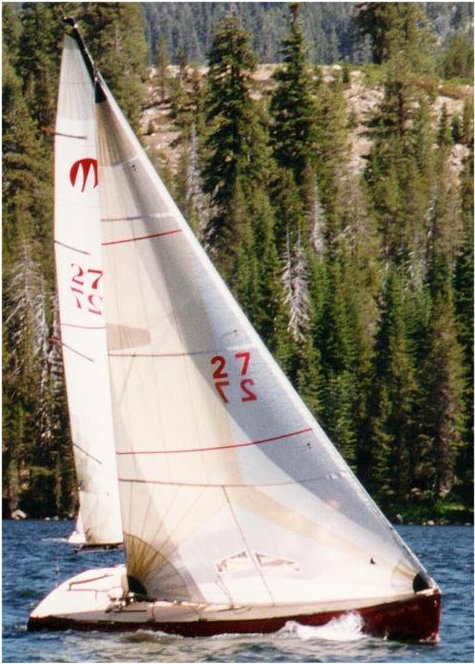

MOORE 24
Built by Moore Brothers (USA)
• Designed by George Olson, Ron Moore
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
First Built:
1974
Number Built:
158
Dimensions
Length Overall (LOA):
7.24 m
Length Waterline (LWL):
6.63 m
Beam:
2.19 m
Draft (Max):
1.24 m
Weight & Ballast
Displacement:
930 kg
Ballast:
454 kg

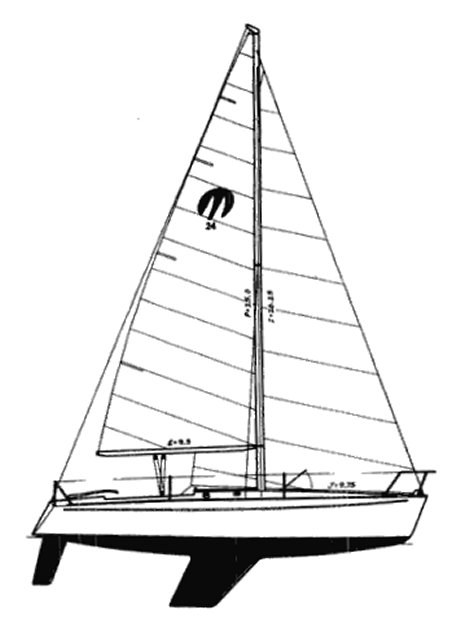

Sail Plan
Foresail Area:
11.89 m²
Mainsail Area:
11.03 m²
Sail Area:
22.92 m²
Sail Area (reported):
22.95 m²
I (Fore Triangle Height):
8.00 m
J (Fore Triangle Base):
2.97 m
P (Mainsail Hoist):
7.62 m
E (Boom Length):
2.90 m
Est. Forestay Length:
8.53 m
Engine & Systems
Performance Ratios
Hull Speed:
6.25 knots
SA/Displacement (Calc):
24.52
SA/Displacement (Reported):
24.55
Ballast/Disp Ratio:
48.78%
Displacement/Length:
88.95
Comfort Ratio:
10.27
Capsize Screening:
2.26
S-Number:
5.69
Immersion:
100 kg/cm
Notes
Displacement (without sails, safety gear, personal gear, outboard motor) and ballast listed are minimum weight per class rules.
