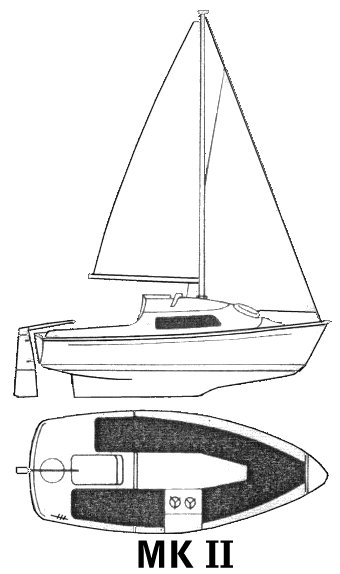

MIRROR OFFSHORE MK II
Built by GDB Marine Ltd./Elizabethan Marine
• Designed by E. G. van de Stadt
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Triple Keel
Rigging Type:
Masthead Sloop
First Built:
1980
Last Built:
1982
Dimensions
Length Overall (LOA):
5.75 m
Length Waterline (LWL):
4.80 m
Beam:
2.05 m
Draft (Max):
0.58 m
Weight & Ballast
Displacement:
771 kg
Ballast:
172 kg
Sail Plan
Sail Area (reported):
14.12 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.32 knots
SA/Displacement (Reported):
17.11
Ballast/Disp Ratio:
22.35%
Displacement/Length:
194.25
Comfort Ratio:
12.42
Capsize Screening:
2.26
Immersion:
68 kg/cm
Notes
van de Stadt design #101. The MKII version (modified by GDB Marine), though based on the same hull, has different rig and interior layout. An inboard was available as an option.
