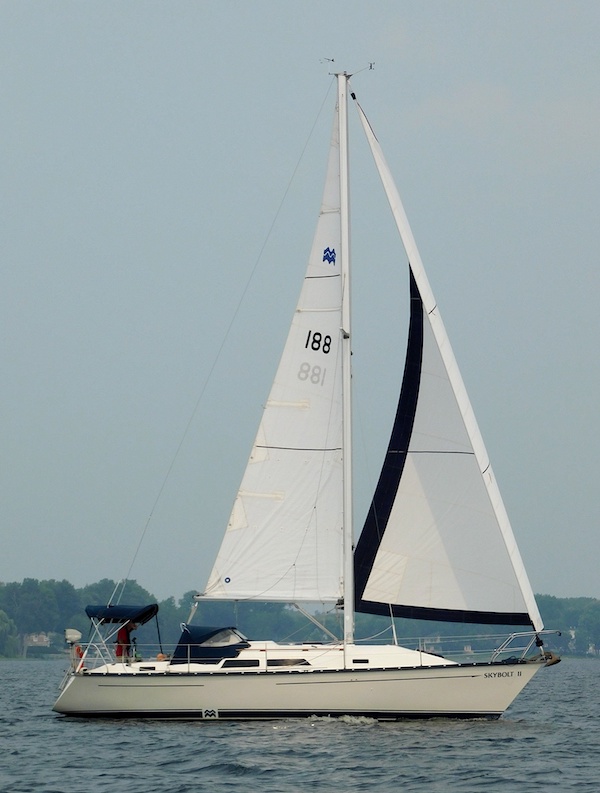

MIRAGE 35
Built by Mirage Yachts Ltd. (CAN)
• Designed by Robert Perry
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1983
Dimensions
Length Overall (LOA):
10.82 m
Length Waterline (LWL):
8.15 m
Beam:
3.56 m
Draft (Max):
1.52 m
Weight & Ballast
Displacement:
4,536 kg
Ballast:
1,588 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
25.36 m²
Mainsail Area:
18.14 m²
Sail Area:
43.50 m²
Sail Area (reported):
43.48 m²
I (Fore Triangle Height):
12.80 m
J (Fore Triangle Base):
3.96 m
P (Mainsail Hoist):
10.82 m
E (Boom Length):
3.35 m
Est. Forestay Length:
13.40 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Fuel Capacity:
76 L
Water Capacity:
151 L
Performance Ratios
Hull Speed:
6.93 knots
SA/Displacement (Calc):
16.20
SA/Displacement (Reported):
16.19
Ballast/Disp Ratio:
35.00%
Displacement/Length:
233.23
Comfort Ratio:
19.95
Capsize Screening:
2.17
S-Number:
2.26
Immersion:
199 kg/cm
Notes
Mirage 33 and 35 are nearly the same boat. The water line, sail area, beam, draft, and interior layout of these two boats is identical. The Mirage 35 has a reverse transom, (which accounts for the additional LOA) and weights a few hundred pounds more.
