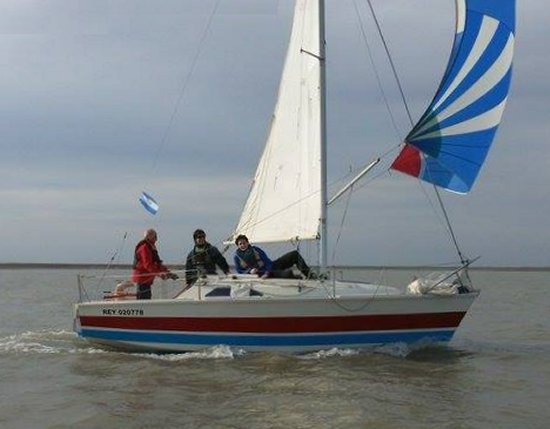

MIRADOR
Built by Bell Woodworking/plans available
• Designed by Julian Everitt
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
First Built:
1980
Number Built:
1400
Dimensions
Length Overall (LOA):
6.10 m
Length Waterline (LWL):
4.88 m
Beam:
2.50 m
Draft (Max):
1.22 m
Draft (Min):
0.23 m
Weight & Ballast
Displacement:
907 kg
Ballast:
300 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
7.80 m²
Mainsail Area:
8.99 m²
Sail Area:
16.79 m²
Sail Area (reported):
16.82 m²
I (Fore Triangle Height):
6.92 m
J (Fore Triangle Base):
2.26 m
P (Mainsail Hoist):
7.19 m
E (Boom Length):
2.50 m
Est. Forestay Length:
7.28 m
Engine & Systems
Performance Ratios
Hull Speed:
5.36 knots
SA/Displacement (Calc):
18.26
SA/Displacement (Reported):
18.29
Ballast/Disp Ratio:
33.05%
Displacement/Length:
217.98
Comfort Ratio:
10.89
Capsize Screening:
2.61
S-Number:
2.64
Immersion:
84 kg/cm
Notes
'Flat-pack-kit' lifting keel trailer sailer sponsored by the Sunday Mirror newspaper. One of the class, built from a kit, was sailed around the world single handed crossing the Atlantic, Pacific and Indian oceans.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
