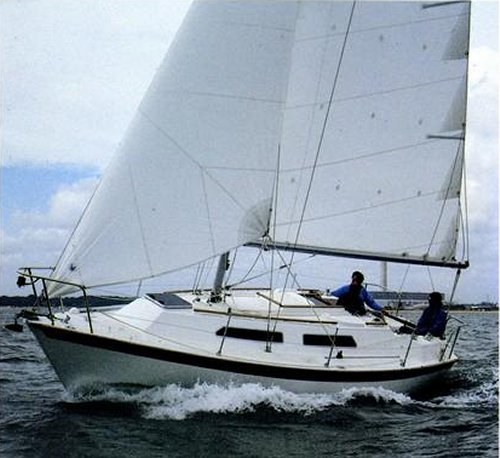

MERLIN 28 (WESTERLY)
Built by Westerly Marine Ltd. (UK)
• Designed by Ed Dubois
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
First Built:
1984
Last Built:
1990
Number Built:
151
Dimensions
Length Overall (LOA):
8.25 m
Length Waterline (LWL):
7.20 m
Beam:
3.03 m
Draft (Max):
1.53 m
Max Height:
11.19 m
Weight & Ballast
Displacement:
3,490 kg
Ballast:
1,355 kg
Sail Plan
Sail Area (reported):
31.31 m²
Engine & Systems
Engine Make:
Bukh or Volvo
Engine Type:
Diesel
Engine Power:
20 HP
Fuel Capacity:
79 L
Water Capacity:
76 L
Performance Ratios
Hull Speed:
6.51 knots
SA/Displacement (Reported):
13.88
Ballast/Disp Ratio:
38.82%
Displacement/Length:
260.65
Comfort Ratio:
22.64
Capsize Screening:
2.02
Immersion:
150 kg/cm
Notes
Also available with twin/bilge keels: Draft: 3.36'/1.025m; Ballast: 3,329 lbs / 1,510 kg
