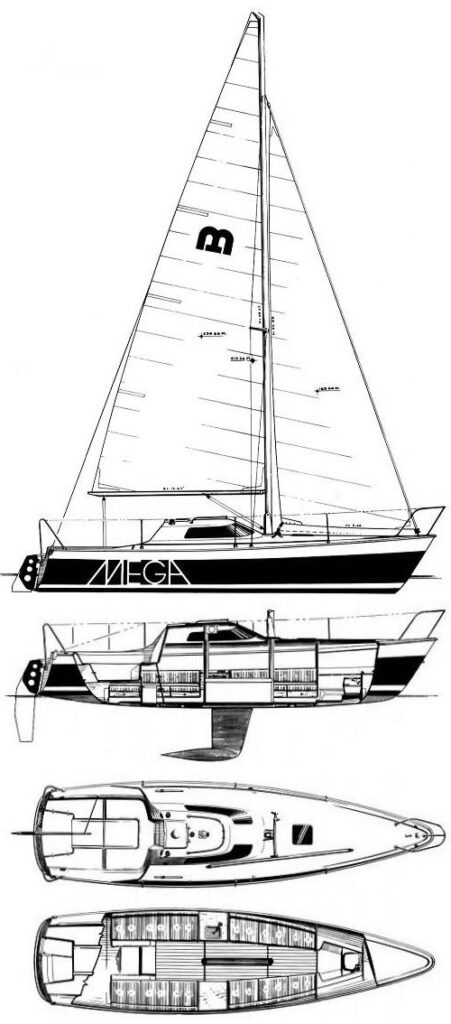

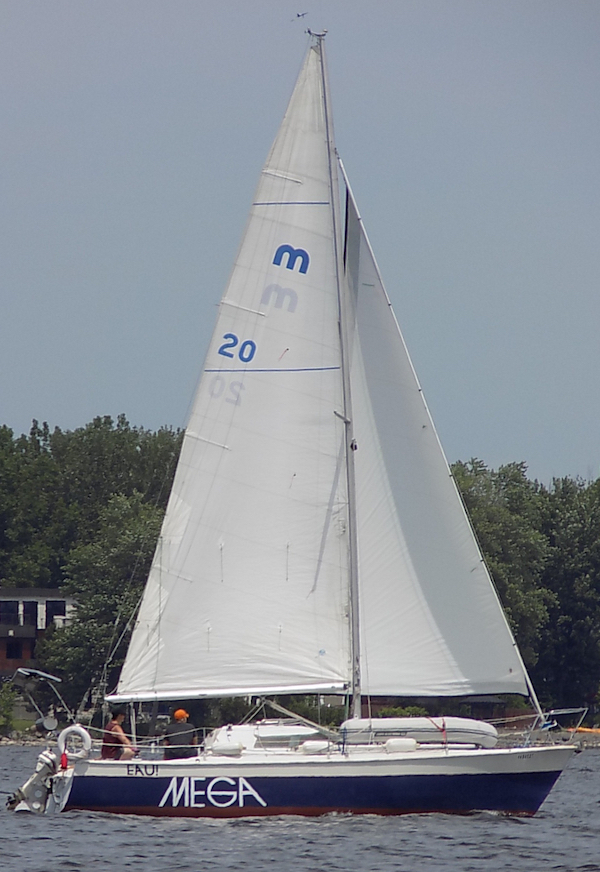

MEGA 30 OD (C&C)
Built by C&C Yachts
• Designed by C&C Design
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
First Built:
1977
Number Built:
115
Dimensions
Length Overall (LOA):
9.12 m
Length Waterline (LWL):
8.33 m
Beam:
2.41 m
Draft (Max):
1.52 m
Draft (Min):
0.61 m
Weight & Ballast
Displacement:
2,041 kg
Ballast:
1,021 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
17.02 m²
Mainsail Area:
22.72 m²
Sail Area:
39.73 m²
Sail Area (reported):
39.76 m²
I (Fore Triangle Height):
10.15 m
J (Fore Triangle Base):
3.35 m
P (Mainsail Hoist):
10.88 m
E (Boom Length):
4.18 m
Est. Forestay Length:
10.69 m
Engine & Systems
Performance Ratios
Hull Speed:
7.01 knots
SA/Displacement (Calc):
25.18
SA/Displacement (Reported):
25.20
Ballast/Disp Ratio:
50.00%
Displacement/Length:
98.41
Comfort Ratio:
15.71
Capsize Screening:
1.92
S-Number:
5.55
Immersion:
138 kg/cm
Notes
Originally developed as joint venture of C&C Yachts and North Sails. The concept of producing a mass marketed 30' trailerable one-design sailboat was brought to C&C by Peter Barrett of North Sails. Peter and George Cuthbertson oversaw the design concept which was done by the C&C Design Group, headed by Rob Ball. Robert Mazza was the project Manager for the Mega. In addition, Rob Ball, Steve Killing, George Cassian, Bill Goman, Clive Hussy, and George Hazen all had their initials on the Mega drawings.
