MARLIN HERITAGE 23
Built by Cape Cod Shipbuilding (USA)
• Designed by Herreshoff
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
First Built:
1958
Number Built:
160
Dimensions
Length Overall (LOA):
7.01 m
Length Waterline (LWL):
5.16 m
Beam:
2.31 m
Draft (Max):
1.12 m
Weight & Ballast
Displacement:
1,744 kg
Ballast:
635 kg
Ballast Type:
Lead

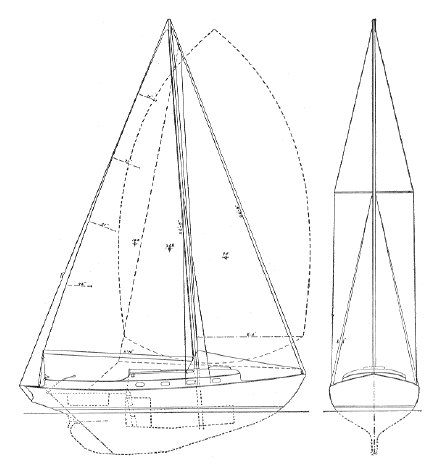

Sail Plan
Foresail Area:
11.06 m²
Mainsail Area:
12.98 m²
Sail Area:
24.03 m²
Sail Area (reported):
25.08 m²
I (Fore Triangle Height):
8.53 m
J (Fore Triangle Base):
2.59 m
P (Mainsail Hoist):
7.74 m
E (Boom Length):
3.35 m
Est. Forestay Length:
8.92 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
2YM15
Engine Power:
15 HP
Performance Ratios
Hull Speed:
5.51 knots
SA/Displacement (Calc):
16.91
SA/Displacement (Reported):
17.65
Ballast/Disp Ratio:
36.41%
Displacement/Length:
354.36
Comfort Ratio:
21.34
Capsize Screening:
1.94
S-Number:
1.37
Immersion:
82 kg/cm
Notes
This is a larger version of the Herreshoff designed FISH but with a cabin and different rig. A smaller version was originally built of wood by Herreshoff Manufacturing. The design was acquired by Cape Cod Shipbuilding where it was built of fiberglass with some modifications at the direction of Sydney Herreshoff.
