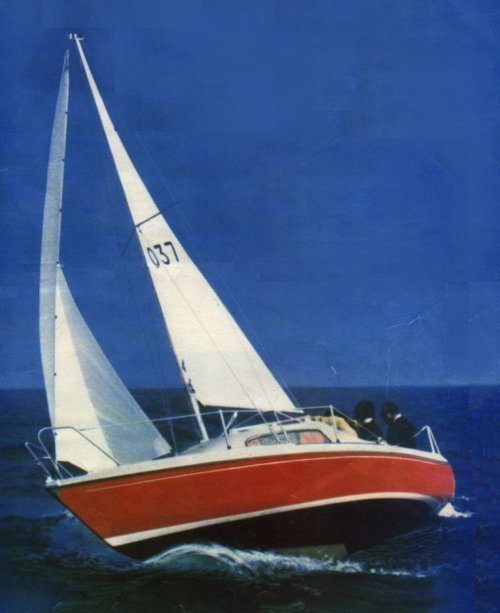

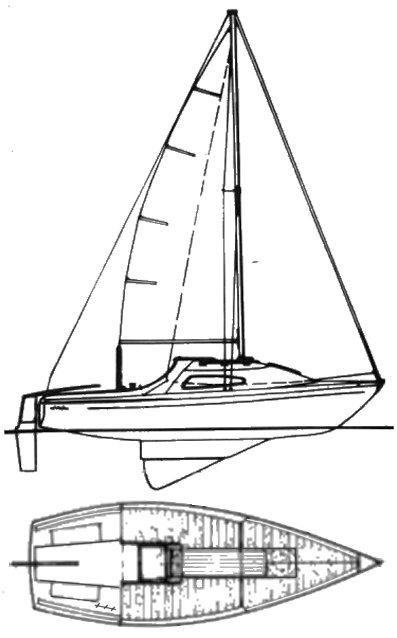

MANTA 19
Built by Schöchl Yachtbau/Sunbeam Yachts (AUT) / Blakes Marine (UK)
• Designed by Anton Miglitsch
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
First Built:
1973
Last Built:
1989
Number Built:
1240
Dimensions
Length Overall (LOA):
5.66 m
Length Waterline (LWL):
5.03 m
Beam:
2.07 m
Draft (Max):
0.91 m
Draft (Min):
0.48 m
Headroom:
1.26 m
Max Height:
7.62 m
Weight & Ballast
Displacement:
680 kg
Ballast:
185 kg
Sail Plan
Sail Area (reported):
12.88 m²
Engine & Systems
Engine Make:
Outboard
Performance Ratios
Hull Speed:
5.44 knots
SA/Displacement (Reported):
16.96
Ballast/Disp Ratio:
27.20%
Displacement/Length:
149.07
Comfort Ratio:
10.55
Capsize Screening:
2.38
Immersion:
71 kg/cm
Notes
Available with bilge keels
