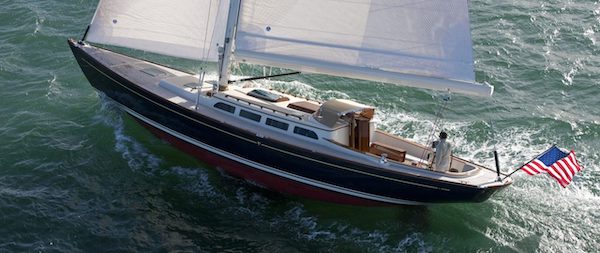

M52 (MORRIS)
Built by Morris Yachts
• Designed by Sparkman & Stephens
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
2009
Dimensions
Length Overall (LOA):
16.13 m
Length Waterline (LWL):
11.63 m
Beam:
4.27 m
Draft (Max):
2.03 m
Max Height:
24.69 m
Weight & Ballast
Displacement:
15,451 kg
Ballast:
5,167 kg
Ballast Type:
Lead

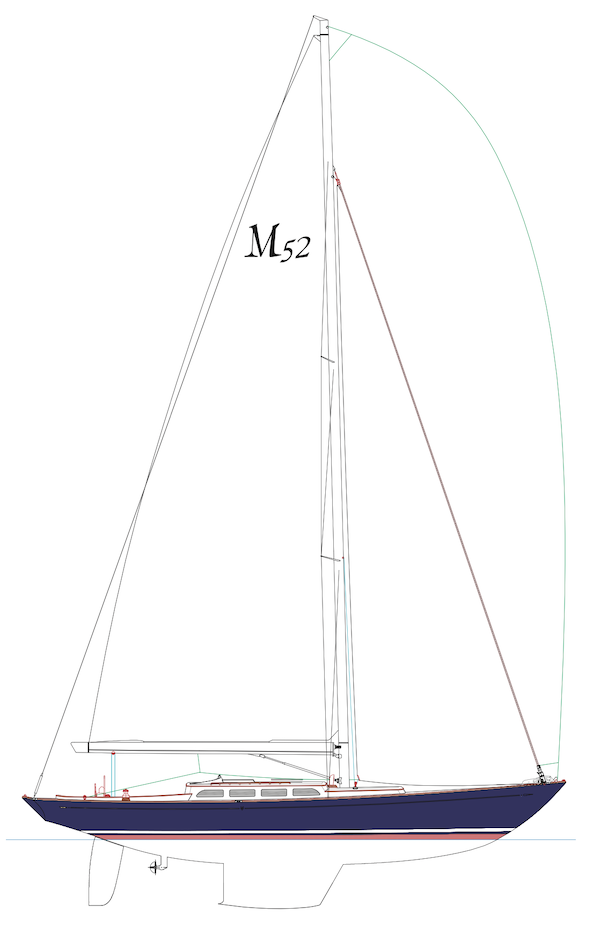

Sail Plan
Foresail Area:
54.01 m²
Mainsail Area:
72.87 m²
Sail Area:
126.89 m²
Sail Area (reported):
131.36 m²
I (Fore Triangle Height):
18.69 m
J (Fore Triangle Base):
5.78 m
P (Mainsail Hoist):
19.65 m
E (Boom Length):
7.42 m
Est. Forestay Length:
19.57 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
4JH4-TCE
Engine Power:
75 HP
Fuel Capacity:
303 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
8.28 knots
SA/Displacement (Calc):
20.88
SA/Displacement (Reported):
21.62
Ballast/Disp Ratio:
33.44%
Displacement/Length:
273.45
Comfort Ratio:
36.79
Capsize Screening:
1.73
S-Number:
2.27
Immersion:
341 kg/cm
Notes
Optional shoal keel: draft - 5.67 ft; ballast - 11,947 lbs.
