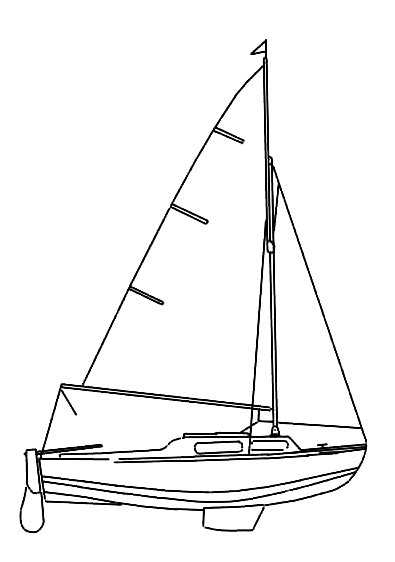

LYSANDER
Built by Amateur built to plans/Febris Marine
• Designed by Percy Blandford
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Twin Keel
Rigging Type:
Gunter
First Built:
1963
Dimensions
Length Overall (LOA):
5.18 m
Length Waterline (LWL):
5.06 m
Beam:
1.98 m
Draft (Max):
0.76 m
Weight & Ballast
Displacement:
358 kg
Ballast:
51 kg
Sail Plan
Sail Area (reported):
11.43 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.46 knots
SA/Displacement (Reported):
23.07
Ballast/Disp Ratio:
14.18%
Displacement/Length:
77.10
Comfort Ratio:
6.03
Capsize Screening:
2.81
Immersion:
69 kg/cm
Notes
The LYSANDER trailer-sailer was designed specifically for home construction by the amateur using marine ply panels laid on frames. The standard boat is 17'(5.18m) long though many 'stretched' 19' (5.8m) versions have been built. The original design was gunter rigged to facilitate trailing but over the years Bermudan, cutter, gaff and even junk rig variants have been used. Some later boats were built of fiberglass (by Febris Marine UK). Plans for the home builder are still available through the class association.
