LUDERS 16
Built by Luders Marine Construction (USA)
• Designed by A. E. Luders
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin Keel
Rigging Type:
Fractional Sloop
First Built:
1933
Last Built:
1979
Number Built:
229
Dimensions
Length Overall (LOA):
8.03 m
Length Waterline (LWL):
4.98 m
Beam:
1.75 m
Draft (Max):
1.22 m
Weight & Ballast
Displacement:
1,338 kg
Ballast:
726 kg

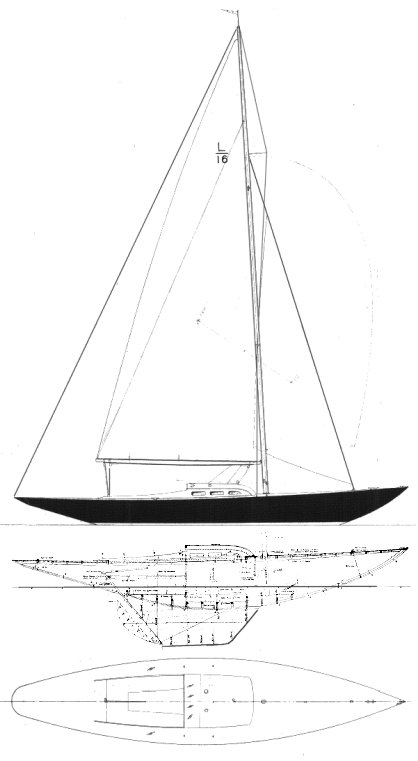

Sail Plan
Foresail Area:
6.03 m²
Mainsail Area:
14.82 m²
Sail Area:
20.84 m²
Sail Area (reported):
20.81 m²
I (Fore Triangle Height):
6.78 m
J (Fore Triangle Base):
1.78 m
P (Mainsail Hoist):
8.84 m
E (Boom Length):
3.35 m
Est. Forestay Length:
7.01 m
Engine & Systems
Performance Ratios
Hull Speed:
5.41 knots
SA/Displacement (Calc):
17.50
SA/Displacement (Reported):
17.47
Ballast/Disp Ratio:
54.24%
Displacement/Length:
302.42
Comfort Ratio:
22.93
Capsize Screening:
1.61
S-Number:
1.77
Immersion:
60 kg/cm
Notes
Originally called the Fishers Island L-Class. The very first boats (14) were of conventional planked construction from the Luders Yard for the Fishers Island YC. Most of these were destroyed in a hurricane after the very first year. After World War II orders came, first from the Chicago YC, for a new version, built of molded plywood. It is thought more than 100 of these were built. In the 1960's and 70's, a fiberglass version was built by Continental Plastics Corporation, then by Midwest Marine and Easterly Yachts.
