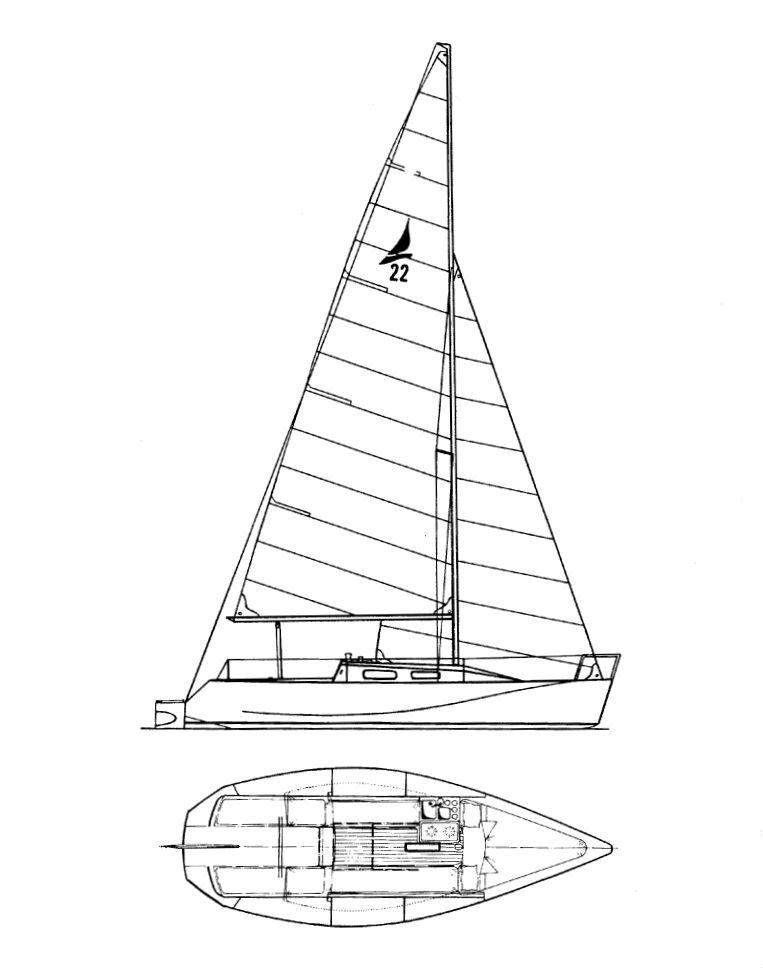

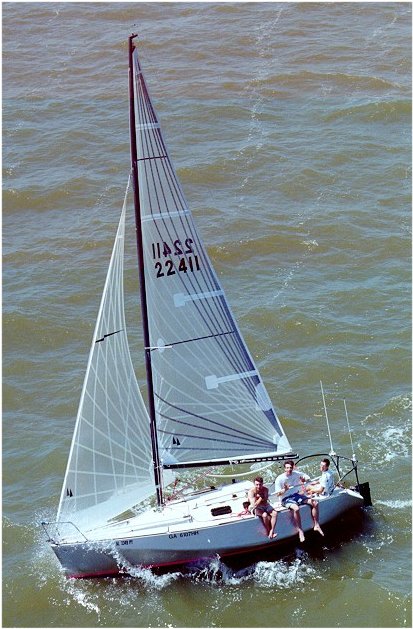

LINDENBERG 22 M/T
Built by Lindenberg Yachts (USA)
• Designed by Bruce Kelly/Paul Lindenberg
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Swing Keel
Rigging Type:
Fractional Sloop
First Built:
1978
Dimensions
Length Overall (LOA):
6.55 m
Length Waterline (LWL):
5.26 m
Beam:
2.44 m
Draft (Max):
1.42 m
Draft (Min):
0.23 m
Weight & Ballast
Displacement:
816 kg
Ballast:
363 kg
Sail Plan
Foresail Area:
7.58 m²
Mainsail Area:
12.31 m²
Sail Area:
19.89 m²
Sail Area (reported):
20.44 m²
I (Fore Triangle Height):
6.86 m
J (Fore Triangle Base):
2.21 m
P (Mainsail Hoist):
8.08 m
E (Boom Length):
3.05 m
Est. Forestay Length:
7.21 m
Engine & Systems
Performance Ratios
Hull Speed:
5.57 knots
SA/Displacement (Calc):
23.20
SA/Displacement (Reported):
23.84
Ballast/Disp Ratio:
44.44%
Displacement/Length:
156.55
Comfort Ratio:
9.41
Capsize Screening:
2.63
S-Number:
4.08
Immersion:
88 kg/cm
