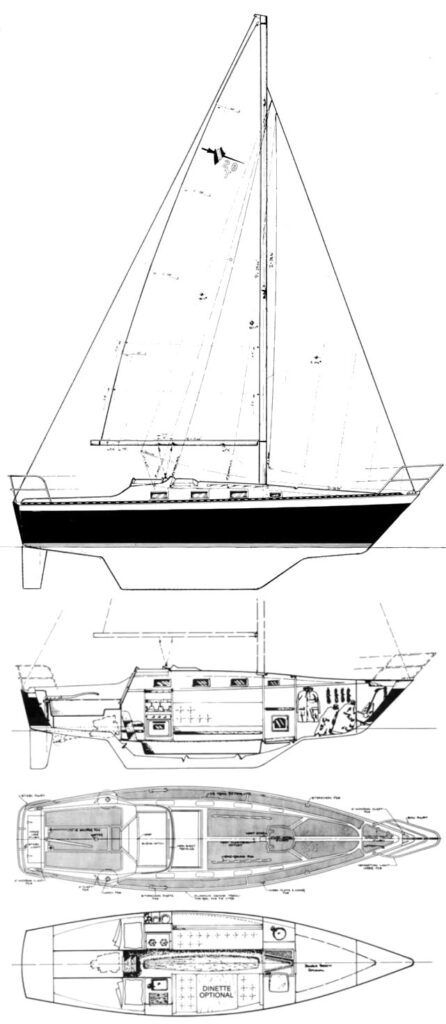

LANCER 28T MK5
Built by Lancer
• Designed by W. Shad Turner
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
First Built:
1982
Dimensions
Length Overall (LOA):
8.43 m
Length Waterline (LWL):
7.29 m
Beam:
2.44 m
Draft (Max):
0.91 m
Headroom:
1.88 m
Max Height:
11.58 m
Weight & Ballast
Displacement:
2,359 kg
Ballast:
1,179 kg
Sail Plan
Foresail Area:
13.90 m²
Mainsail Area:
14.82 m²
Sail Area:
28.72 m²
Sail Area (reported):
28.71 m²
I (Fore Triangle Height):
8.69 m
J (Fore Triangle Base):
3.20 m
P (Mainsail Hoist):
8.84 m
E (Boom Length):
3.35 m
Est. Forestay Length:
9.26 m
Engine & Systems
Water Capacity:
57 L
Performance Ratios
Hull Speed:
6.55 knots
SA/Displacement (Calc):
16.53
SA/Displacement (Reported):
16.52
Ballast/Disp Ratio:
50.00%
Displacement/Length:
169.62
Comfort Ratio:
20.10
Capsize Screening:
1.85
S-Number:
3.03
Immersion:
122 kg/cm
Notes
Optional 7.5 hp Yanmar Diesel inboard.
