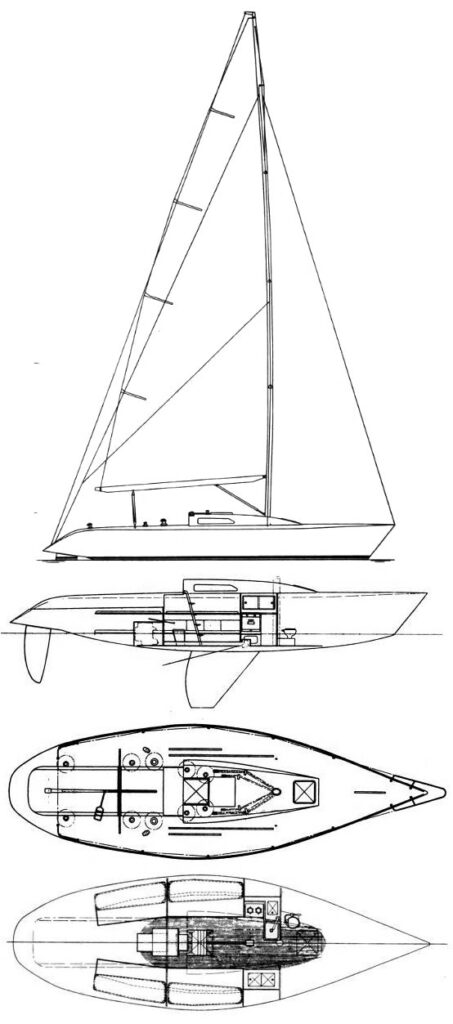

LAGER 40
Built by Wiggers Custom Yachts
• Designed by Joubert / Nivelt
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
First Built:
1984
Dimensions
Length Overall (LOA):
12.09 m
Length Waterline (LWL):
10.13 m
Beam:
3.86 m
Draft (Max):
2.18 m
Weight & Ballast
Displacement:
5,579 kg
Ballast:
3,039 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
31.45 m²
Mainsail Area:
42.85 m²
Sail Area:
74.30 m²
Sail Area (reported):
74.42 m²
I (Fore Triangle Height):
14.65 m
J (Fore Triangle Base):
4.29 m
P (Mainsail Hoist):
15.62 m
E (Boom Length):
5.49 m
Est. Forestay Length:
15.27 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Engine Power:
30 HP
Performance Ratios
Hull Speed:
7.73 knots
SA/Displacement (Calc):
24.10
SA/Displacement (Reported):
24.14
Ballast/Disp Ratio:
54.47%
Displacement/Length:
149.38
Comfort Ratio:
18.37
Capsize Screening:
2.20
S-Number:
4.32
Immersion:
269 kg/cm
Notes
Based on 'Diva' a highly successful IOR race winner of 1984.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
