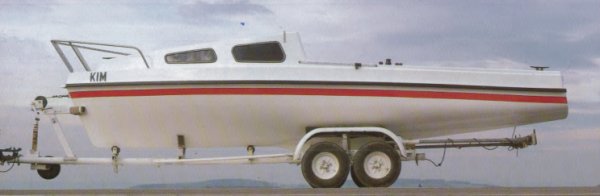

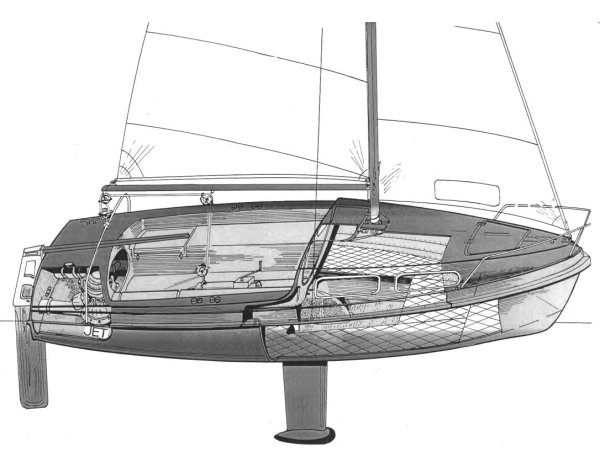

KIM AR
Built by Kim Boote GmbH (GER)
• Designed by Armin Philips
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Fractional Sloop
First Built:
1979
Last Built:
1999
Number Built:
2000
Dimensions
Length Overall (LOA):
5.50 m
Length Waterline (LWL):
5.00 m
Beam:
1.27 m
Draft (Max):
1.00 m
Draft (Min):
0.35 m
Weight & Ballast
Displacement:
330 kg
Ballast:
80 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
12.91 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.43 knots
SA/Displacement (Reported):
27.53
Ballast/Disp Ratio:
24.18%
Displacement/Length:
73.68
Comfort Ratio:
9.89
Capsize Screening:
1.86
Immersion:
44 kg/cm
Notes
Predecessors were the KIM A CRUISER and B type dinghy. Both originate from the LIS dinghy build by Hermes Plastik (GER).
