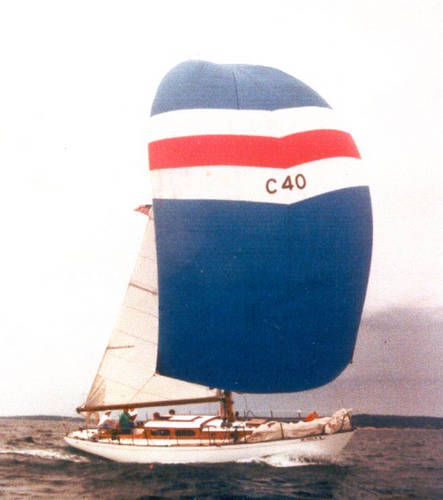

KETTENBURG 40
Built by Kettenburg Marine (USA)
• Designed by Paul Kettenburg
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin Keel
Rigging Type:
Masthead Sloop
First Built:
1959
Number Built:
40
Dimensions
Length Overall (LOA):
12.14 m
Length Waterline (LWL):
8.33 m
Beam:
3.15 m
Draft (Max):
1.62 m
Weight & Ballast
Displacement:
6,464 kg
Ballast:
2,268 kg
Ballast Type:
Lead

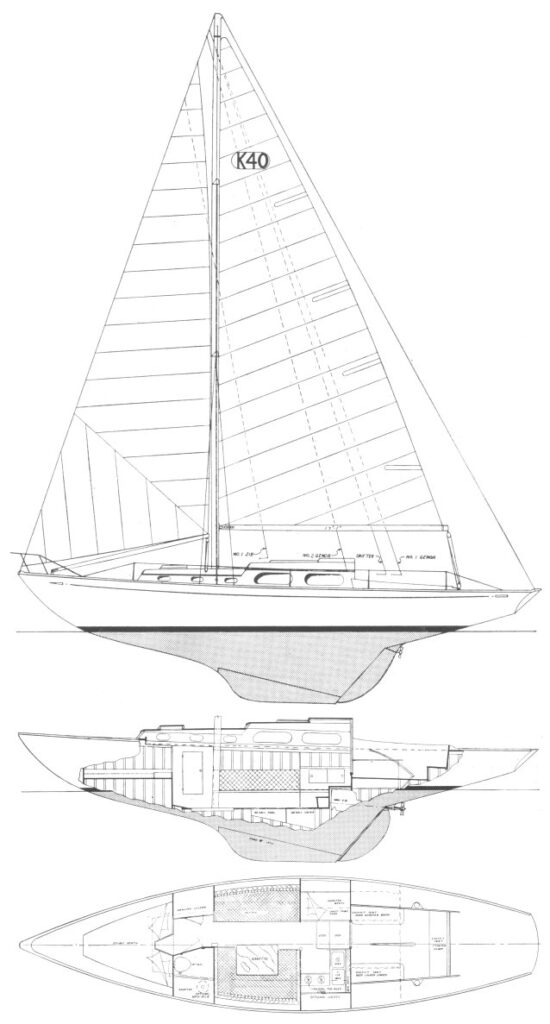

Sail Plan
Foresail Area:
29.30 m²
Mainsail Area:
29.36 m²
Sail Area:
58.66 m²
Sail Area (reported):
58.62 m²
I (Fore Triangle Height):
13.11 m
J (Fore Triangle Base):
4.47 m
P (Mainsail Hoist):
11.28 m
E (Boom Length):
5.21 m
Est. Forestay Length:
13.85 m
Engine & Systems
Engine Make:
Graymarine
Engine Type:
Gas
Performance Ratios
Hull Speed:
7.01 knots
SA/Displacement (Calc):
17.25
SA/Displacement (Reported):
17.24
Ballast/Disp Ratio:
35.09%
Displacement/Length:
311.64
Comfort Ratio:
31.60
Capsize Screening:
1.71
S-Number:
1.68
Immersion:
180 kg/cm
