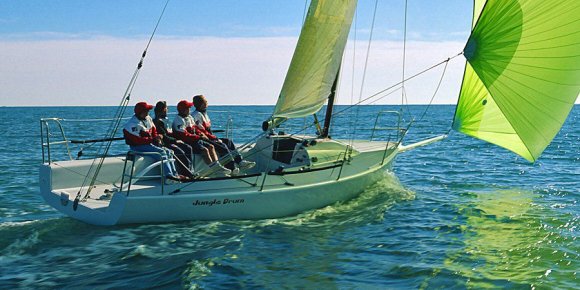

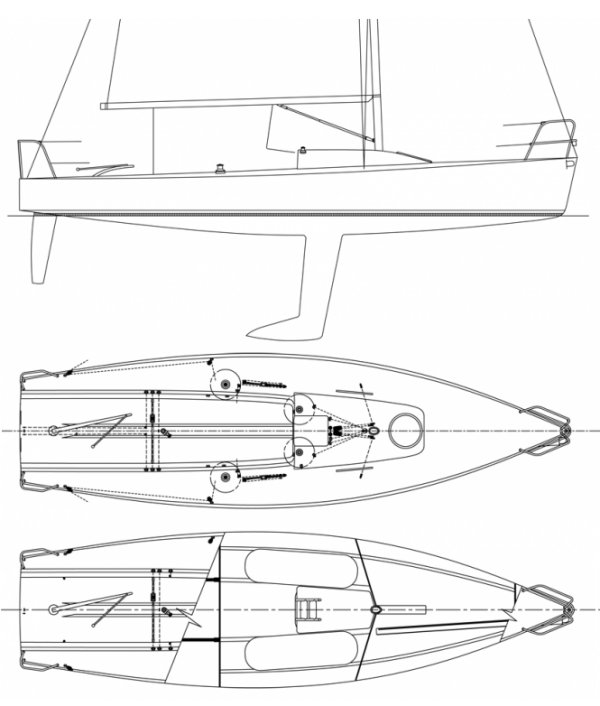

J/90
Built by J/Boats (USA)
• Designed by Johnstone
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
1997
Last Built:
1998
Number Built:
5
Dimensions
Length Overall (LOA):
9.20 m
Length Waterline (LWL):
8.23 m
Beam:
2.59 m
Draft (Max):
1.98 m
Weight & Ballast
Displacement:
1,497 kg
Ballast:
844 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
17.36 m²
Mainsail Area:
24.15 m²
Sail Area:
41.51 m²
Sail Area (reported):
41.53 m²
I (Fore Triangle Height):
10.85 m
J (Fore Triangle Base):
3.20 m
P (Mainsail Hoist):
10.93 m
E (Boom Length):
4.42 m
Est. Forestay Length:
11.31 m
Engine & Systems
Performance Ratios
Hull Speed:
6.96 knots
SA/Displacement (Calc):
32.34
SA/Displacement (Reported):
32.35
Ballast/Disp Ratio:
56.36%
Displacement/Length:
74.85
Comfort Ratio:
10.54
Capsize Screening:
2.29
S-Number:
7.24
Immersion:
146 kg/cm
Notes
A single purpose race boat that was only in production for 1 year.
