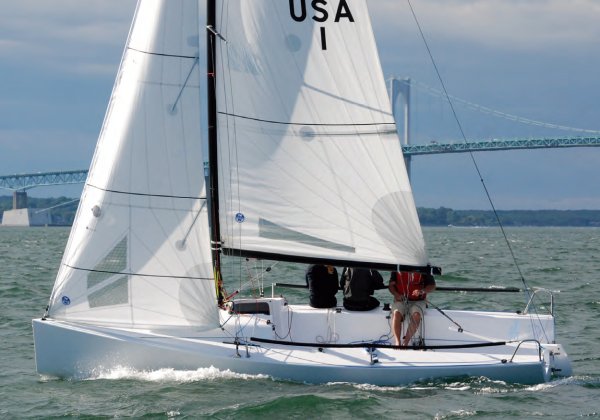

J/70
Built by J Boats (USA)
• Designed by Alan Johnstone
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
First Built:
2012
Number Built:
1100
Dimensions
Length Overall (LOA):
6.93 m
Length Waterline (LWL):
6.24 m
Beam:
2.25 m
Draft (Max):
1.50 m
Weight & Ballast
Displacement:
812 kg
Ballast:
285 kg
Ballast Type:
Lead

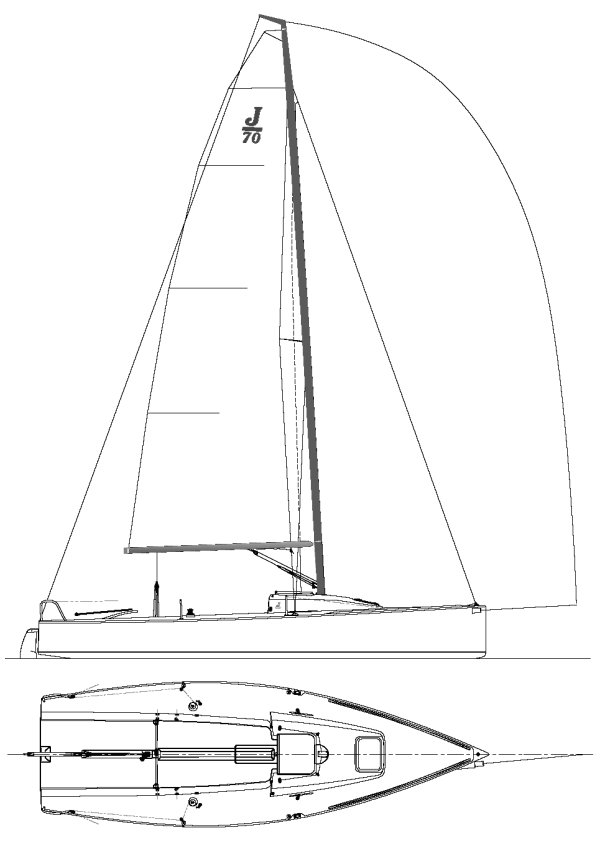

Sail Plan
Foresail Area:
9.55 m²
Mainsail Area:
11.47 m²
Sail Area:
21.02 m²
Sail Area (reported):
21.00 m²
I (Fore Triangle Height):
8.16 m
J (Fore Triangle Base):
2.34 m
P (Mainsail Hoist):
7.97 m
E (Boom Length):
2.88 m
ISP:
9.19 m
Est. Forestay Length:
8.49 m
Engine & Systems
Performance Ratios
Hull Speed:
6.06 knots
SA/Displacement (Calc):
24.61
SA/Displacement (Reported):
24.58
Ballast/Disp Ratio:
35.08%
Displacement/Length:
93.16
Comfort Ratio:
9.12
Capsize Screening:
2.43
S-Number:
5.60
Immersion:
96 kg/cm
Notes
Spinnaker (asym.) area: 491 sq.ft./45 m²
