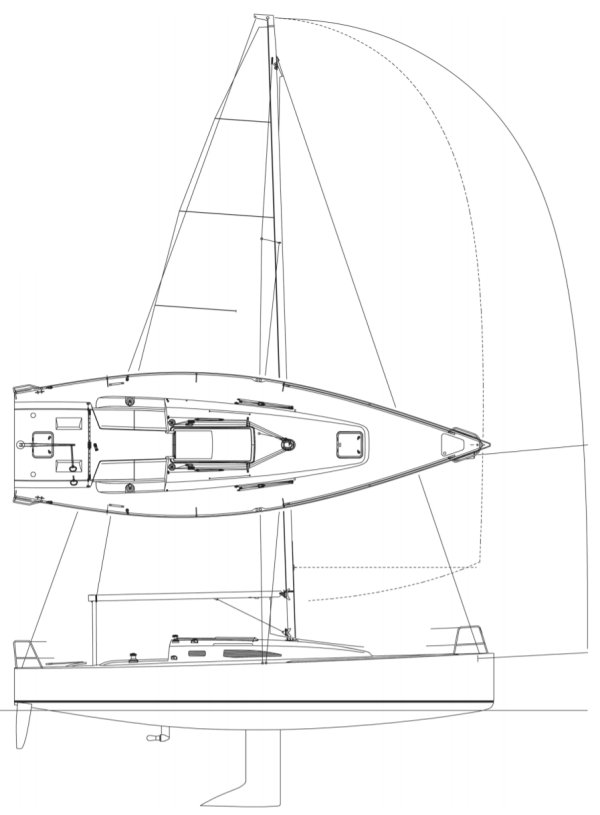

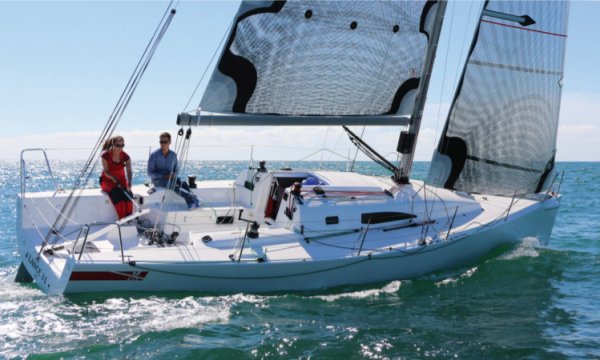

J/11S
Built by J Composites Shipyard (FRA)
• Designed by Alan Johnstone
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & dual rudders
Rigging Type:
Fractional Sloop
First Built:
2016
Dimensions
Length Overall (LOA):
10.90 m
Length Waterline (LWL):
10.04 m
Beam:
3.31 m
Draft (Max):
2.20 m
Weight & Ballast
Displacement:
4,600 kg
Ballast:
1,570 kg
Sail Plan
Foresail Area:
28.98 m²
Mainsail Area:
27.59 m²
Sail Area:
56.56 m²
Sail Area (reported):
62.90 m²
I (Fore Triangle Height):
13.80 m
J (Fore Triangle Base):
4.20 m
P (Mainsail Hoist):
12.83 m
E (Boom Length):
4.30 m
SPL/TPS:
6.65 m
ISP:
14.66 m
Est. Forestay Length:
14.42 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
D1-20
Engine Power:
18 HP
Fuel Capacity:
49 L
Water Capacity:
98 L
Performance Ratios
Hull Speed:
7.69 knots
SA/Displacement (Calc):
20.86
SA/Displacement (Reported):
23.20
Ballast/Disp Ratio:
34.13%
Displacement/Length:
126.67
Comfort Ratio:
19.35
Capsize Screening:
2.01
S-Number:
4.32
Immersion:
228 kg/cm
Notes
Asymetric Area: 95m2/1023 sq.ft.
