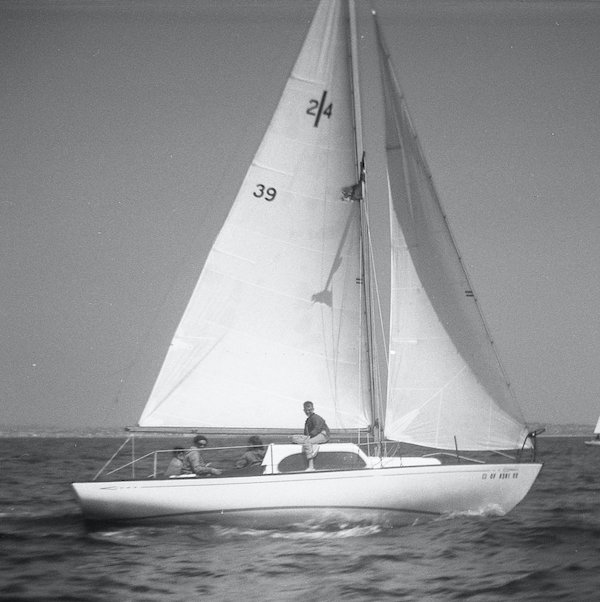

ISLANDER 24
Built by Glas Laminates/McGlasson Marine/Islander Yachts (USA)
• Designed by J. H. McGlasson
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Modified Full Keel
Rigging Type:
Masthead Sloop
First Built:
1961
Last Built:
1967
Dimensions
Length Overall (LOA):
7.32 m
Length Waterline (LWL):
6.10 m
Beam:
2.39 m
Draft (Max):
1.04 m
Weight & Ballast
Displacement:
1,497 kg
Ballast:
771 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
11.24 m²
Mainsail Area:
13.78 m²
Sail Area:
25.02 m²
Sail Area (reported):
27.31 m²
I (Fore Triangle Height):
8.78 m
J (Fore Triangle Base):
2.56 m
P (Mainsail Hoist):
7.86 m
E (Boom Length):
3.51 m
Est. Forestay Length:
9.14 m
Engine & Systems
Engine Type:
Outboard (well)
Water Capacity:
95 L
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calc):
19.49
SA/Displacement (Reported):
21.28
Ballast/Disp Ratio:
51.52%
Displacement/Length:
184.15
Comfort Ratio:
15.51
Capsize Screening:
2.11
S-Number:
3.20
Immersion:
100 kg/cm
Notes
It seems to have been a collaboration between Glas Laminates (a producer of spa's, outhouses, etc.) and Joseph H. McGlasson. McGlasson, designer and builder of a 24' wood sloop called the Catalina Islander approached Glas Laminates about producing a fiberglass version. Using one of these boats as a plug, Glas Laminates pulled a mold and the Islander 24 was born.
