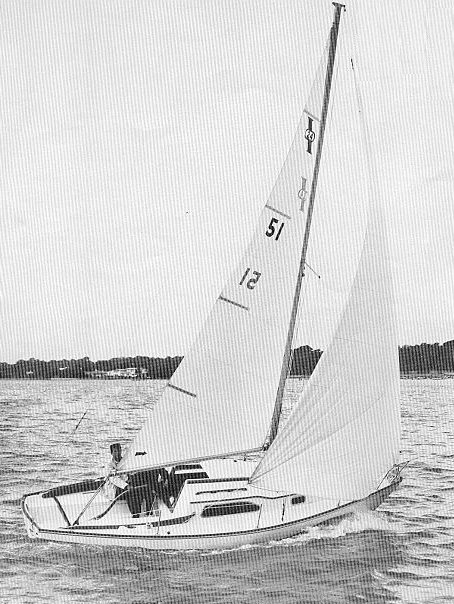

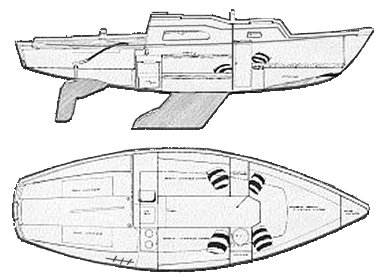

IRWIN 24
Built by Irwin Yacht & Marine Corporation (USA)
• Designed by Ted Irwin
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1968
Dimensions
Length Overall (LOA):
7.32 m
Length Waterline (LWL):
5.64 m
Beam:
2.44 m
Draft (Max):
1.07 m
Weight & Ballast
Displacement:
1,361 kg
Ballast:
476 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
12.46 m²
Mainsail Area:
14.05 m²
Sail Area:
26.51 m²
Sail Area (reported):
26.48 m²
I (Fore Triangle Height):
8.84 m
J (Fore Triangle Base):
2.82 m
P (Mainsail Hoist):
8.38 m
E (Boom Length):
3.35 m
Est. Forestay Length:
9.28 m
Engine & Systems
Performance Ratios
Hull Speed:
5.76 knots
SA/Displacement (Calc):
22.01
SA/Displacement (Reported):
21.98
Ballast/Disp Ratio:
35.00%
Displacement/Length:
211.52
Comfort Ratio:
14.42
Capsize Screening:
2.22
S-Number:
3.09
Immersion:
94 kg/cm
Notes
Fixed keel version of the IRWIN 23?.
