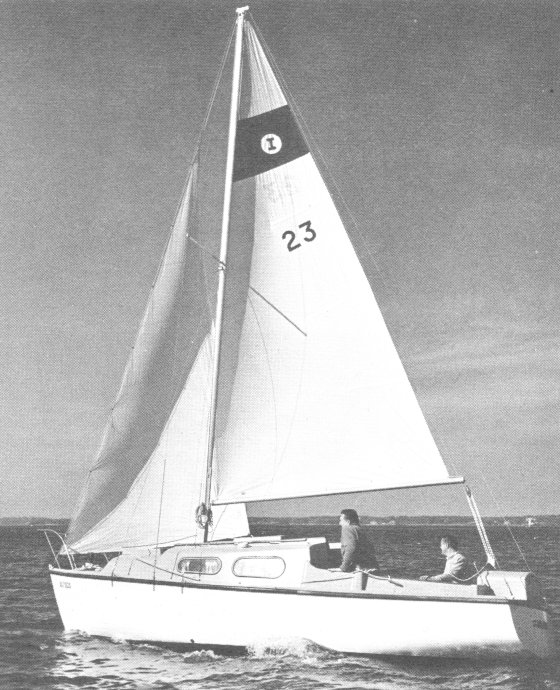

IMPERIAL 23
Built by Russell Marine (UK)
• Designed by L. Wakefield
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Twin Keel
Rigging Type:
Masthead Sloop
First Built:
1966
Dimensions
Length Overall (LOA):
6.86 m
Length Waterline (LWL):
6.10 m
Beam:
2.29 m
Draft (Max):
0.84 m
Weight & Ballast
Displacement:
1,225 kg
Ballast:
508 kg
Ballast Type:
Iron

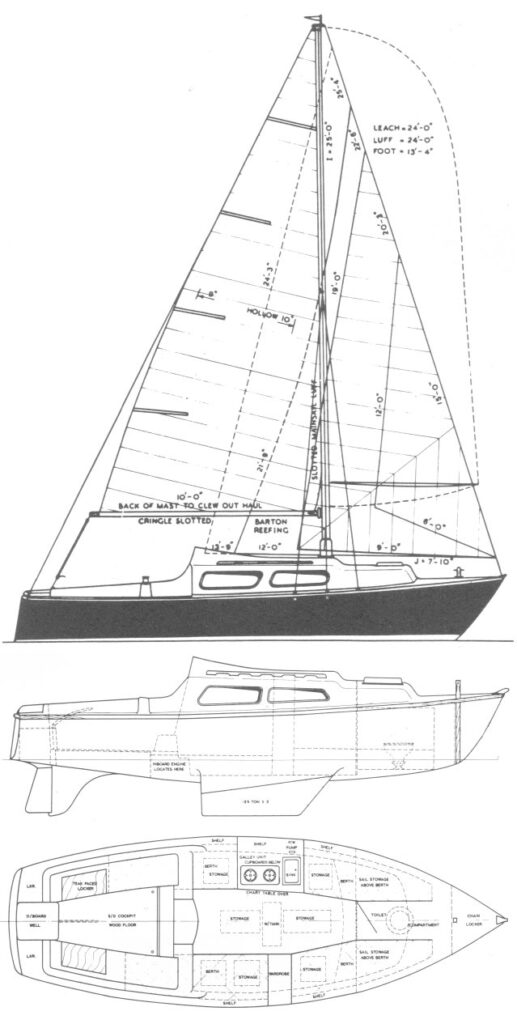

Sail Plan
Foresail Area:
9.09 m²
Mainsail Area:
10.68 m²
Sail Area:
19.78 m²
Sail Area (reported):
19.51 m²
I (Fore Triangle Height):
7.62 m
J (Fore Triangle Base):
2.39 m
P (Mainsail Hoist):
7.01 m
E (Boom Length):
3.05 m
Est. Forestay Length:
7.99 m
Engine & Systems
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calc):
17.61
SA/Displacement (Reported):
17.37
Ballast/Disp Ratio:
41.48%
Displacement/Length:
150.67
Comfort Ratio:
13.73
Capsize Screening:
2.16
S-Number:
3.45
Immersion:
96 kg/cm
Notes
This boat was also called the ISLANDER 23 in the UK. (Not to be confused with the Crealock designed ISLANDER 23 built in the US.)
