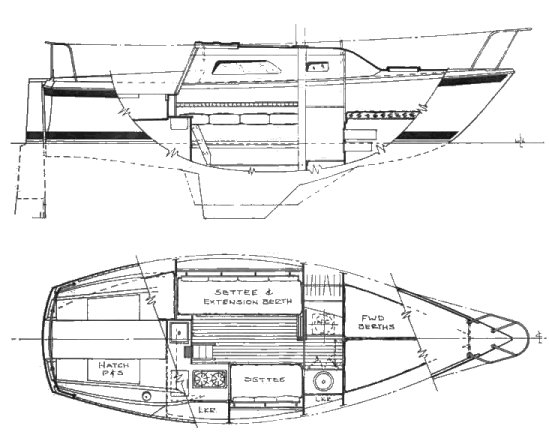

HELMS 24
Built by Jack A. Helms Co. (USA)
• Designed by Stuart Windley
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
First Built:
1977
Number Built:
750
Dimensions
Length Overall (LOA):
7.29 m
Length Waterline (LWL):
6.35 m
Beam:
2.69 m
Draft (Max):
1.27 m
Weight & Ballast
Displacement:
1,905 kg
Ballast:
839 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
14.88 m²
Mainsail Area:
10.66 m²
Sail Area:
25.54 m²
Sail Area (reported):
25.55 m²
I (Fore Triangle Height):
9.30 m
J (Fore Triangle Base):
3.20 m
P (Mainsail Hoist):
7.77 m
E (Boom Length):
2.74 m
Est. Forestay Length:
9.83 m
Engine & Systems
Performance Ratios
Hull Speed:
6.12 knots
SA/Displacement (Calc):
16.94
SA/Displacement (Reported):
16.95
Ballast/Disp Ratio:
44.05%
Displacement/Length:
207.46
Comfort Ratio:
16.39
Capsize Screening:
2.19
S-Number:
2.61
Immersion:
117 kg/cm
Notes
Shoal draft version: 3.00' / 0.91m
