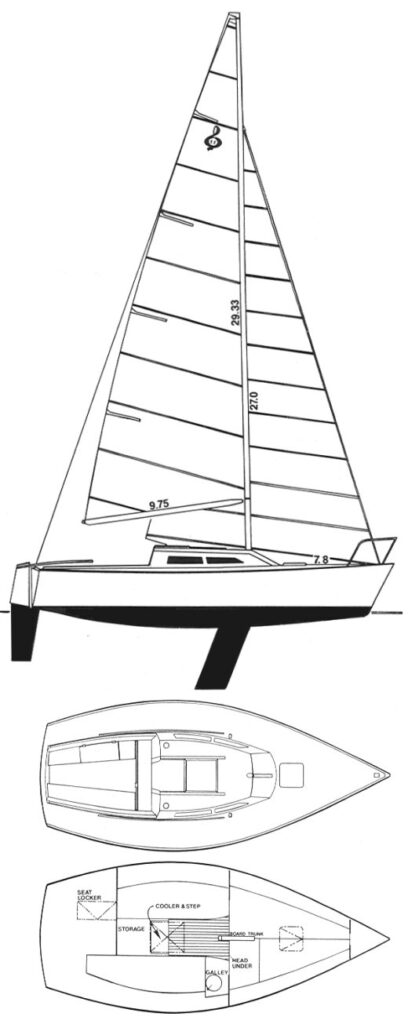

HARMONY 22
Built by Harmony Yachts/Gloucester Yachts (USA)
• Designed by Chris Bjerregaard
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Daggerboard
Rigging Type:
Fractional Sloop
First Built:
1977
Number Built:
37
Dimensions
Length Overall (LOA):
6.71 m
Length Waterline (LWL):
5.94 m
Beam:
2.90 m
Draft (Max):
1.45 m
Draft (Min):
0.27 m
Weight & Ballast
Displacement:
1,361 kg
Ballast:
499 kg
Sail Plan
Foresail Area:
9.78 m²
Mainsail Area:
13.28 m²
Sail Area:
23.07 m²
Sail Area (reported):
23.04 m²
I (Fore Triangle Height):
8.23 m
J (Fore Triangle Base):
2.38 m
P (Mainsail Hoist):
8.94 m
E (Boom Length):
2.97 m
Est. Forestay Length:
8.56 m
Engine & Systems
Performance Ratios
Hull Speed:
5.92 knots
SA/Displacement (Calc):
19.15
SA/Displacement (Reported):
19.13
Ballast/Disp Ratio:
36.67%
Displacement/Length:
180.62
Comfort Ratio:
11.41
Capsize Screening:
2.64
S-Number:
3.21
Immersion:
118 kg/cm
Notes
Designed to MORC rule.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
