HANSE 630E
Built by Hanse Yachts
• Designed by Judel/Vrolijk
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
2006
Dimensions
Length Overall (LOA):
19.00 m
Length Waterline (LWL):
17.10 m
Beam:
5.20 m
Draft (Max):
2.95 m
Weight & Ballast
Displacement:
23,700 kg
Ballast:
8,900 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
89.56 m²
Mainsail Area:
106.72 m²
Sail Area:
196.28 m²
Sail Area (reported):
196.12 m²
I (Fore Triangle Height):
25.74 m
J (Fore Triangle Base):
6.96 m
P (Mainsail Hoist):
25.53 m
E (Boom Length):
8.36 m
Est. Forestay Length:
26.66 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
110 HP
Fuel Capacity:
598 L
Water Capacity:
799 L
Performance Ratios
Hull Speed:
10.04 knots
SA/Displacement (Calc):
24.30
SA/Displacement (Reported):
24.28
Ballast/Disp Ratio:
37.55%
Displacement/Length:
132.11
Comfort Ratio:
31.87
Capsize Screening:
1.83
S-Number:
4.68
Immersion:
611 kg/cm
Notes

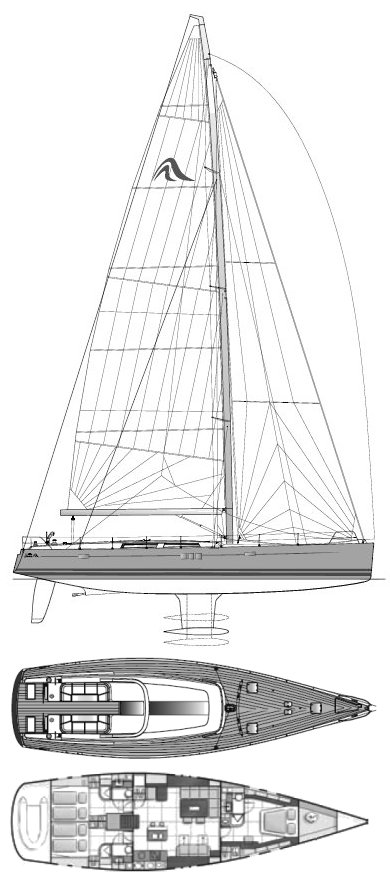

Standard layout shown here. A number of different layouts available.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
