HANSE 470
Built by Hanse Yachts
• Designed by Judel/Vrolijk
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
2005
Dimensions
Length Overall (LOA):
14.31 m
Length Waterline (LWL):
12.60 m
Beam:
4.46 m
Draft (Max):
2.35 m
Max Height:
24.43 m
Weight & Ballast
Displacement:
12,200 kg
Ballast:
3,550 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
53.19 m²
Mainsail Area:
57.00 m²
Sail Area:
110.19 m²
Sail Area (reported):
110.18 m²
I (Fore Triangle Height):
20.00 m
J (Fore Triangle Base):
5.32 m
P (Mainsail Hoist):
20.00 m
E (Boom Length):
5.70 m
Est. Forestay Length:
20.70 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
75 HP
Fuel Capacity:
250 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
8.62 knots
SA/Displacement (Calc):
21.23
SA/Displacement (Reported):
21.22
Ballast/Disp Ratio:
29.10%
Displacement/Length:
169.95
Comfort Ratio:
27.12
Capsize Screening:
1.96
S-Number:
3.62
Immersion:
386 kg/cm
Notes

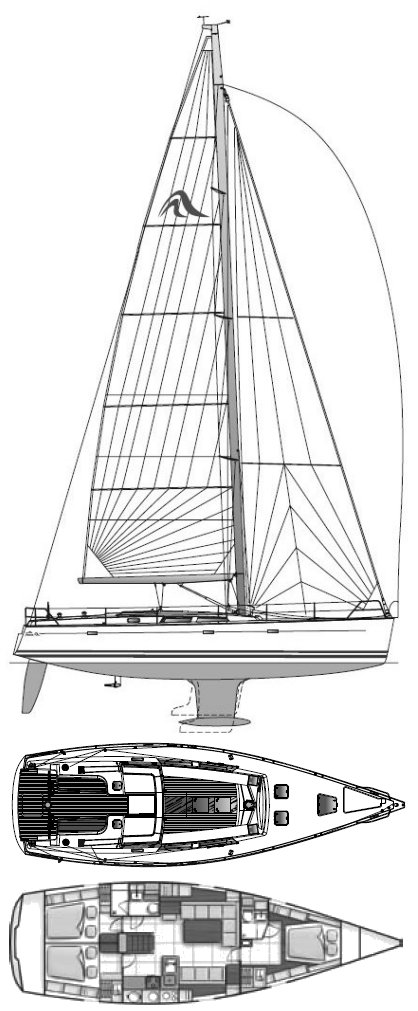

Standard layout shown here but a number of interior arrangements available.
