HANSE 348
Built by Hanse Yachts
• Designed by Judel/Vrolijk
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
First Built:
2018
Dimensions
Length Overall (LOA):
10.40 m
Length Waterline (LWL):
9.55 m
Beam:
3.50 m
Draft (Max):
1.95 m
Max Height:
16.25 m
Weight & Ballast
Displacement:
6,300 kg
Ballast:
2,300 kg
Ballast Type:
Cast iron

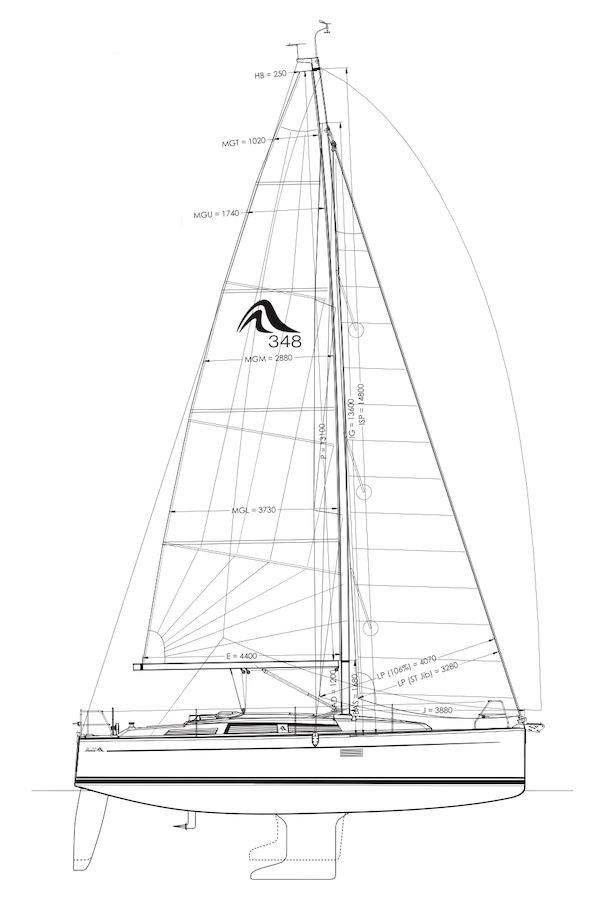

Sail Plan
Foresail Area:
26.39 m²
Mainsail Area:
28.83 m²
Sail Area:
55.22 m²
Sail Area (reported):
58.53 m²
I (Fore Triangle Height):
13.60 m
J (Fore Triangle Base):
3.88 m
P (Mainsail Hoist):
13.10 m
E (Boom Length):
4.40 m
ISP:
14.80 m
Est. Forestay Length:
14.14 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
21 HP
Fuel Capacity:
160 L
Water Capacity:
230 L
Performance Ratios
Hull Speed:
7.50 knots
SA/Displacement (Calc):
16.52
SA/Displacement (Reported):
17.51
Ballast/Disp Ratio:
36.51%
Displacement/Length:
201.62
Comfort Ratio:
25.86
Capsize Screening:
1.91
S-Number:
2.63
Immersion:
229 kg/cm
Notes
Upgraded 345. Changes include taller rig, standard L-shaped keel (vs. T-bulb), Yanmar (vs. Volvo) engine.
