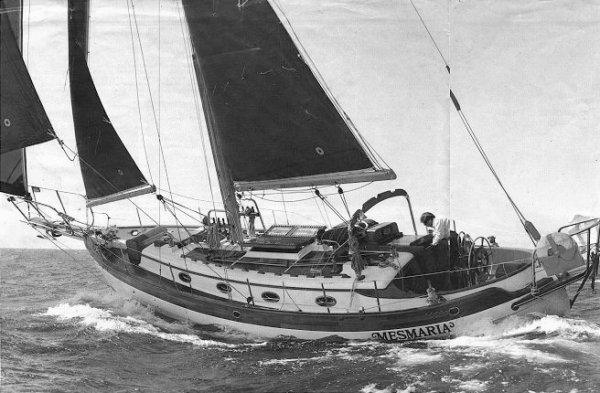

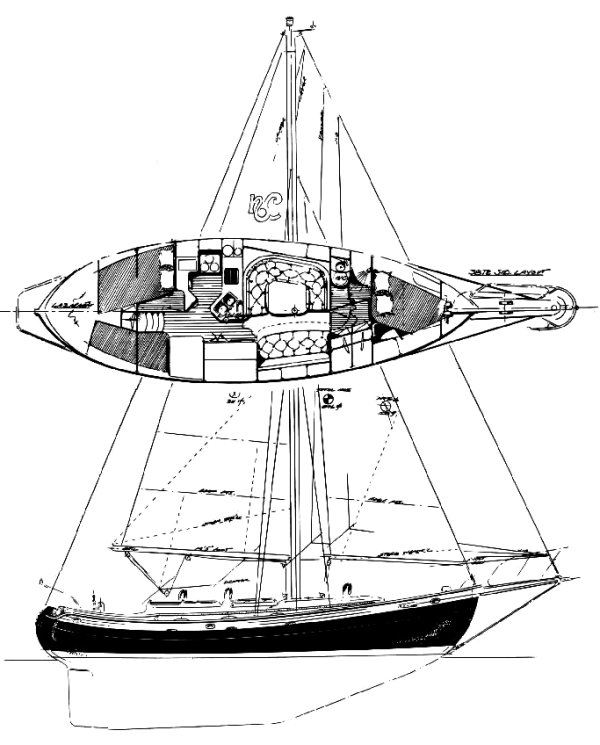

HANS CHRISTIAN 38T
Built by Anderson Yachts Ltd. (TAIWAN)
• Designed by Harwood Ives
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Long Keel
Rigging Type:
Cutter
First Built:
1976
Last Built:
1989
Dimensions
Length Overall (LOA):
11.56 m
Length Waterline (LWL):
10.06 m
Beam:
3.76 m
Draft (Max):
1.83 m
Max Height:
16.61 m
Weight & Ballast
Displacement:
12,020 kg
Ballast:
4,445 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
50.59 m²
Mainsail Area:
31.84 m²
Sail Area:
82.43 m²
Sail Area (reported):
82.40 m²
I (Fore Triangle Height):
15.09 m
J (Fore Triangle Base):
6.71 m
P (Mainsail Hoist):
13.66 m
E (Boom Length):
4.66 m
Est. Forestay Length:
16.51 m
Engine & Systems
Engine Type:
Diesel
Fuel Capacity:
379 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
7.70 knots
SA/Displacement (Calc):
16.03
SA/Displacement (Reported):
16.03
Ballast/Disp Ratio:
36.98%
Displacement/Length:
329.20
Comfort Ratio:
41.86
Capsize Screening:
1.66
S-Number:
1.47
Immersion:
260 kg/cm
Notes
Three versions of the HC 38 were produced though basic dimensions were similar. This version, was designated the 'Traditional Cutter' or HANS CHRISTIAN 38T. Another version, usually referred to as the HANS CHRISTIAN 38 MKII (introduced in 1978 and built at another yard), has a slightly different hull shape, rig and interior. A few of both versions were delivered with a ketch rig.
