HAIDA 26
Built by Mayhew and Strutt (CAN)
• Designed by Raymond Richards
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
First Built:
1965
Dimensions
Length Overall (LOA):
7.85 m
Length Waterline (LWL):
6.40 m
Beam:
2.51 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
1,950 kg
Ballast:
816 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
12.66 m²
Mainsail Area:
15.50 m²
Sail Area:
28.15 m²
Sail Area (reported):
28.15 m²
I (Fore Triangle Height):
8.93 m
J (Fore Triangle Base):
2.83 m
P (Mainsail Hoist):
8.47 m
E (Boom Length):
3.66 m
Est. Forestay Length:
9.37 m
Engine & Systems
Performance Ratios
Hull Speed:
6.14 knots
SA/Displacement (Calc):
18.39
SA/Displacement (Reported):
18.39
Ballast/Disp Ratio:
41.86%
Displacement/Length:
207.28
Comfort Ratio:
17.82
Capsize Screening:
2.03
S-Number:
2.78
Immersion:
111 kg/cm
Notes

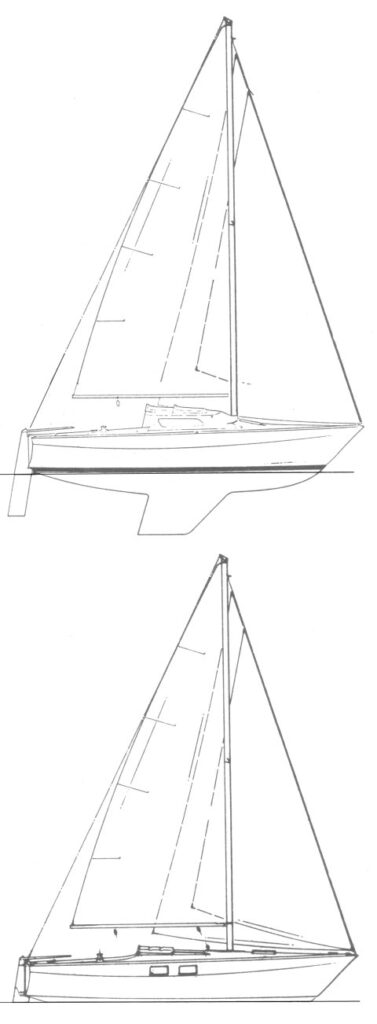

2 versions as shown, cabin and flush deck, the latter being the most common. Interior layout and other details vary greatly.
