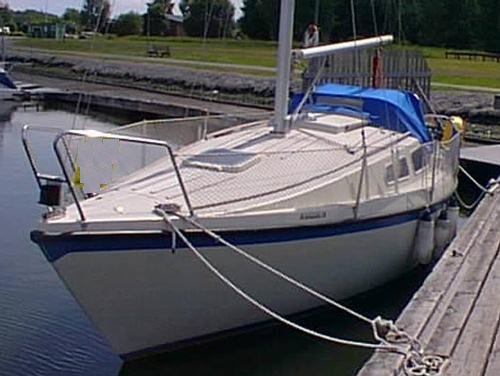

GRANADA 24
Built by Granada Yachts A/S (DEN)
• Designed by Jørn Hansen
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1974
Last Built:
1977
Number Built:
200
Dimensions
Length Overall (LOA):
7.14 m
Length Waterline (LWL):
6.48 m
Beam:
2.52 m
Draft (Max):
1.25 m
Weight & Ballast
Displacement:
1,800 kg
Ballast:
850 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
12.82 m²
Mainsail Area:
10.01 m²
Sail Area:
22.83 m²
Sail Area (reported):
22.85 m²
I (Fore Triangle Height):
9.00 m
J (Fore Triangle Base):
2.85 m
P (Mainsail Hoist):
7.85 m
E (Boom Length):
2.55 m
Est. Forestay Length:
9.44 m
Engine & Systems
Performance Ratios
Hull Speed:
6.18 knots
SA/Displacement (Calc):
15.73
SA/Displacement (Reported):
15.75
Ballast/Disp Ratio:
47.23%
Displacement/Length:
184.35
Comfort Ratio:
16.78
Capsize Screening:
2.09
S-Number:
2.73
Immersion:
112 kg/cm
Notes
Diesel inboard available as an option.
