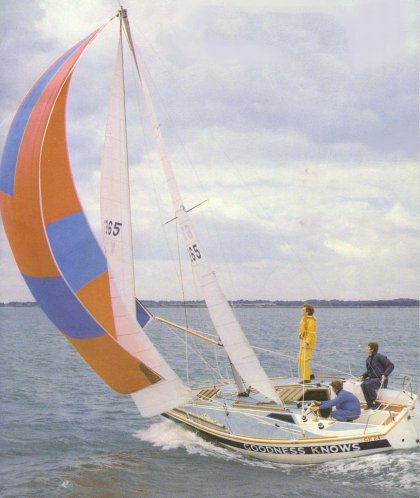

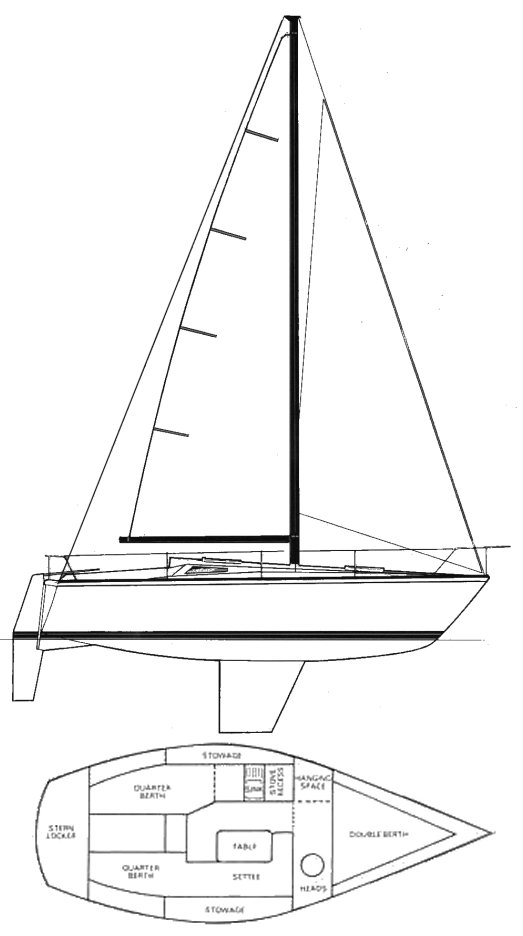

GK 24 (WESTERLY)
Built by Westerly Marine Ltd. (UK)
• Designed by Laurent Giles/Chris Hawkins
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
First Built:
1976
Last Built:
1981
Number Built:
320
Dimensions
Length Overall (LOA):
7.32 m
Length Waterline (LWL):
5.97 m
Beam:
2.84 m
Draft (Max):
1.52 m
Weight & Ballast
Displacement:
1,860 kg
Ballast:
635 kg
Sail Plan
Foresail Area:
13.86 m²
Mainsail Area:
10.27 m²
Sail Area:
24.13 m²
Sail Area (reported):
24.15 m²
I (Fore Triangle Height):
9.10 m
J (Fore Triangle Base):
3.05 m
P (Mainsail Hoist):
7.92 m
E (Boom Length):
2.59 m
SPL/TPS:
3.05 m
ISP:
909.52 m
Est. Forestay Length:
9.59 m
Engine & Systems
Fuel Capacity:
23 L
Water Capacity:
23 L
Performance Ratios
Hull Speed:
5.93 knots
SA/Displacement (Calc):
16.27
SA/Displacement (Reported):
16.28
Ballast/Disp Ratio:
34.15%
Displacement/Length:
243.84
Comfort Ratio:
15.48
Capsize Screening:
2.33
S-Number:
2.16
Immersion:
117 kg/cm
Notes
Based on an IOR 1/4 ton racing design.
