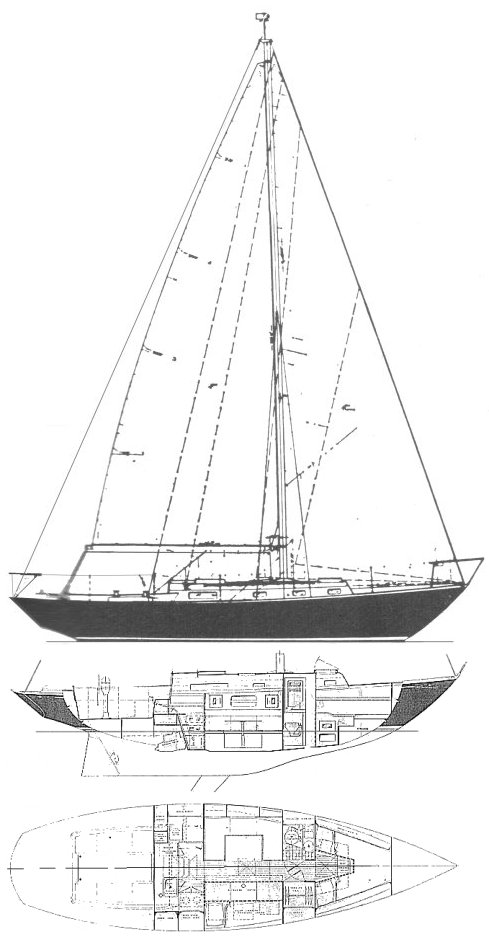

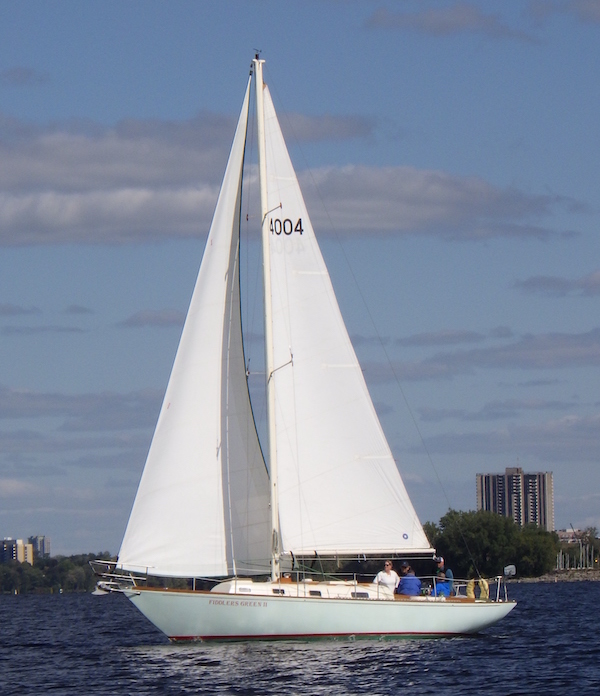

FRIGATE 36 (C&C)
Built by Belleville Marine (CAN)
• Designed by C&C
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
First Built:
1968
Number Built:
36
Dimensions
Length Overall (LOA):
10.87 m
Length Waterline (LWL):
7.44 m
Beam:
3.11 m
Draft (Max):
2.18 m
Draft (Min):
1.09 m
Weight & Ballast
Displacement:
5,250 kg
Ballast:
2,359 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
26.27 m²
Mainsail Area:
21.19 m²
Sail Area:
47.46 m²
Sail Area (reported):
47.47 m²
I (Fore Triangle Height):
12.93 m
J (Fore Triangle Base):
4.06 m
P (Mainsail Hoist):
11.13 m
E (Boom Length):
3.81 m
Est. Forestay Length:
13.55 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Fuel Capacity:
68 L
Water Capacity:
95 L
Performance Ratios
Hull Speed:
6.62 knots
SA/Displacement (Calc):
16.03
SA/Displacement (Reported):
16.03
Ballast/Disp Ratio:
44.92%
Displacement/Length:
354.84
Comfort Ratio:
29.19
Capsize Screening:
1.81
S-Number:
1.31
Immersion:
159 kg/cm
Notes
For the FRIGATE, Belleville Marine commissioned a redesign of the INVADER (C&C)(1966), but with a keel/cb and more sail area. . Thanks to FRIGATE owner Peter Cohrs for providing corrections and additional information on this yacht.
