FAST 40
Built by North End Marine
• Designed by Alan Adler
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
First Built:
1982
Last Built:
1983
Number Built:
18
Dimensions
Length Overall (LOA):
12.14 m
Length Waterline (LWL):
10.97 m
Beam:
2.44 m
Draft (Max):
2.29 m
Draft (Min):
1.07 m
Weight & Ballast
Displacement:
1,860 kg
Ballast:
907 kg
Ballast Type:
Lead

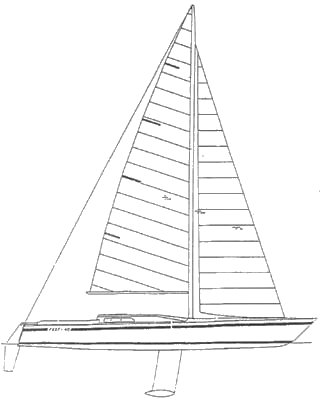

Sail Plan
Foresail Area:
20.49 m²
Mainsail Area:
22.95 m²
Sail Area:
43.43 m²
Sail Area (reported):
43.48 m²
I (Fore Triangle Height):
11.20 m
J (Fore Triangle Base):
3.66 m
P (Mainsail Hoist):
11.58 m
E (Boom Length):
3.96 m
Est. Forestay Length:
11.78 m
Engine & Systems
Performance Ratios
Hull Speed:
8.04 knots
SA/Displacement (Calc):
29.28
SA/Displacement (Reported):
29.31
Ballast/Disp Ratio:
48.78%
Displacement/Length:
39.23
Comfort Ratio:
10.69
Capsize Screening:
2.00
S-Number:
7.94
Immersion:
184 kg/cm
Notes
Built in Rockland Maine, by North End Marine - Eric White, builder
