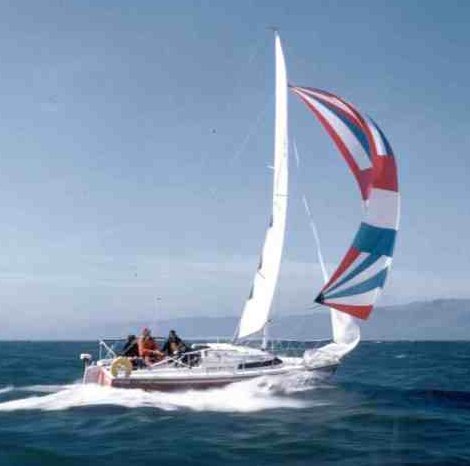

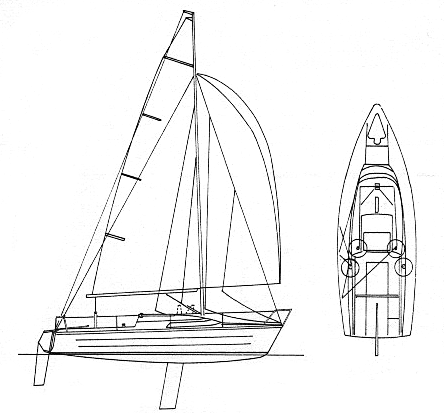

FARR 740 SPORT
Built by Sea Nymph Boats Ltd., NZ/CBZ, IT
• Designed by Bruce Farr
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
First Built:
1980
Dimensions
Length Overall (LOA):
7.40 m
Length Waterline (LWL):
6.63 m
Beam:
2.49 m
Draft (Max):
1.70 m
Draft (Min):
0.28 m
Weight & Ballast
Displacement:
1,361 kg
Ballast:
375 kg
Sail Plan
Foresail Area:
8.96 m²
Mainsail Area:
15.46 m²
Sail Area:
24.43 m²
Sail Area (reported):
23.88 m²
I (Fore Triangle Height):
7.32 m
J (Fore Triangle Base):
2.45 m
P (Mainsail Hoist):
8.84 m
E (Boom Length):
3.50 m
Est. Forestay Length:
7.71 m
Engine & Systems
Performance Ratios
Hull Speed:
6.25 knots
SA/Displacement (Calc):
20.28
SA/Displacement (Reported):
19.82
Ballast/Disp Ratio:
27.57%
Displacement/Length:
130.17
Comfort Ratio:
12.55
Capsize Screening:
2.27
S-Number:
4.17
Immersion:
113 kg/cm
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
