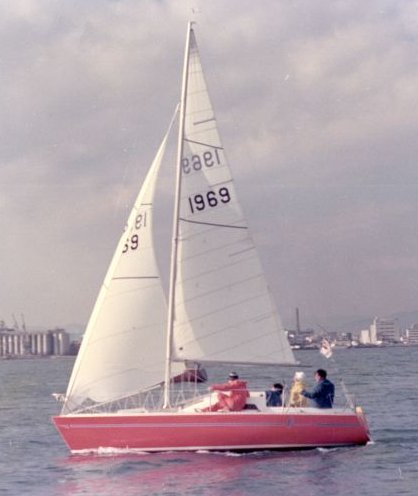

FARR 727
Built by Alpha Marine (NZ)
• Designed by Bruce Farr
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Fractional Sloop
First Built:
1976
Number Built:
40
Dimensions
Length Overall (LOA):
7.26 m
Length Waterline (LWL):
5.97 m
Beam:
2.54 m
Draft (Max):
1.42 m
Weight & Ballast
Displacement:
1,220 kg
Ballast:
490 kg
Sail Plan
Foresail Area:
8.84 m²
Mainsail Area:
13.01 m²
Sail Area:
21.85 m²
Sail Area (reported):
21.83 m²
I (Fore Triangle Height):
7.44 m
J (Fore Triangle Base):
2.38 m
P (Mainsail Hoist):
7.83 m
E (Boom Length):
3.32 m
Est. Forestay Length:
7.81 m
Engine & Systems
Performance Ratios
Hull Speed:
5.93 knots
SA/Displacement (Calc):
19.51
SA/Displacement (Reported):
19.49
Ballast/Disp Ratio:
40.15%
Displacement/Length:
159.98
Comfort Ratio:
11.84
Capsize Screening:
2.40
S-Number:
3.56
Immersion:
104 kg/cm
Notes
Prototype was winner of the Int. 1/4 ton cup(1975).
