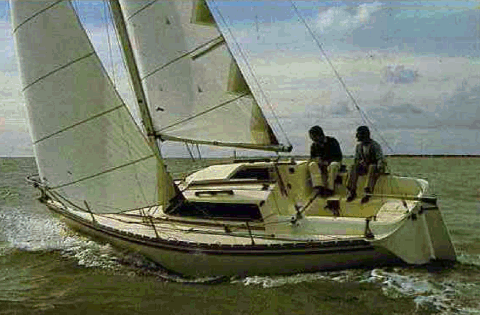

FANTASIA 27 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Philippe H. Harlé
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
First Built:
1981
Last Built:
1996
Number Built:
1800
Dimensions
Length Overall (LOA):
8.30 m
Length Waterline (LWL):
6.56 m
Beam:
2.88 m
Draft (Max):
1.52 m
Weight & Ballast
Displacement:
2,400 kg
Ballast:
750 kg
Ballast Type:
Iron

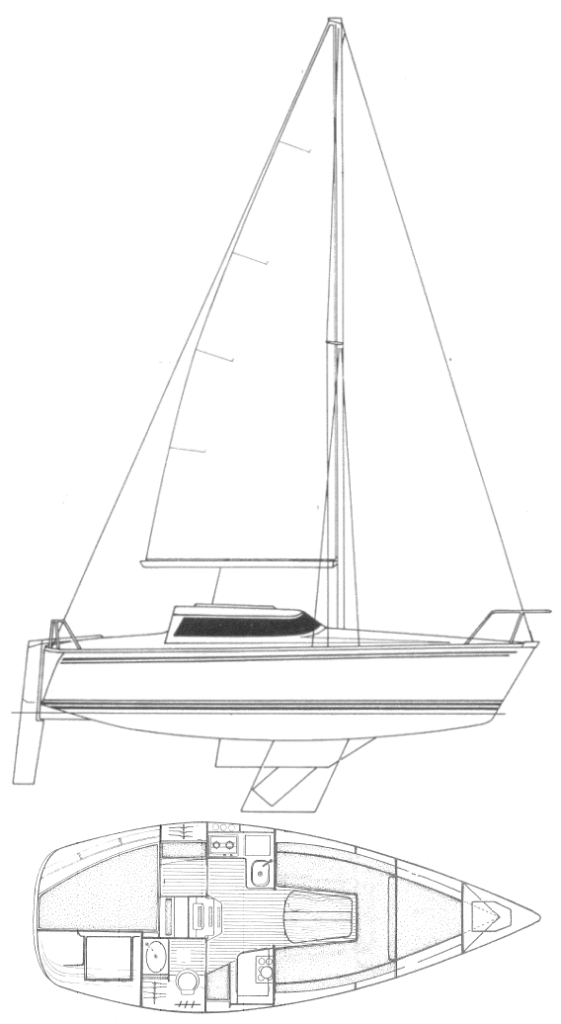

Sail Plan
Foresail Area:
14.90 m²
Mainsail Area:
11.32 m²
Sail Area:
26.22 m²
Sail Area (reported):
23.50 m²
I (Fore Triangle Height):
9.70 m
J (Fore Triangle Base):
3.07 m
P (Mainsail Hoist):
8.10 m
E (Boom Length):
2.80 m
Est. Forestay Length:
10.17 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
1GM10
Engine Power:
9 HP
Fuel Capacity:
26 L
Water Capacity:
49 L
Performance Ratios
Hull Speed:
6.22 knots
SA/Displacement (Calc):
14.92
SA/Displacement (Reported):
13.37
Ballast/Disp Ratio:
31.24%
Displacement/Length:
237.01
Comfort Ratio:
17.67
Capsize Screening:
2.17
S-Number:
2.08
Immersion:
130 kg/cm
Notes
The FANTASIA was available also with a drop keel (draft 2.58ft - 5.58ft; ballast 1940 lbs) or twin keels (draft 1.05m / 3.44 ft; Disp. 870 kg / 1918 lbs.
