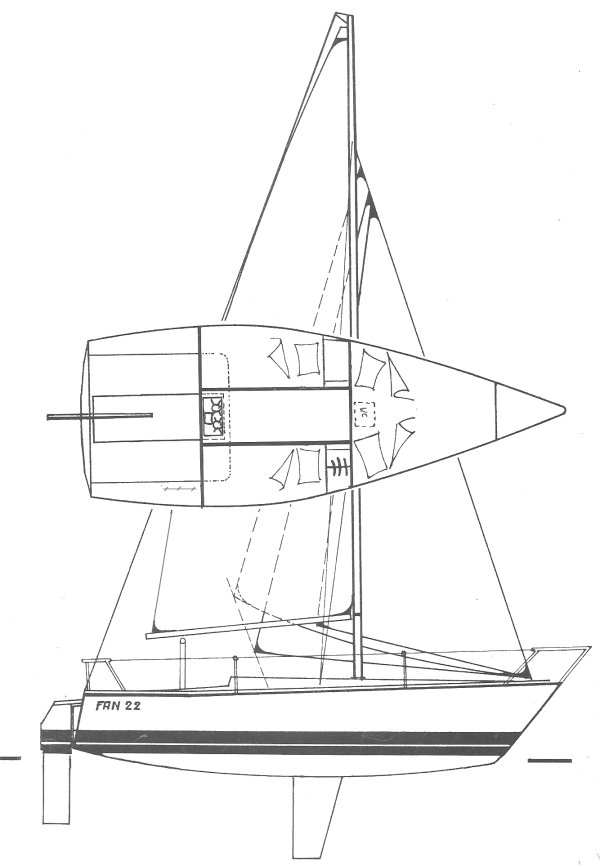

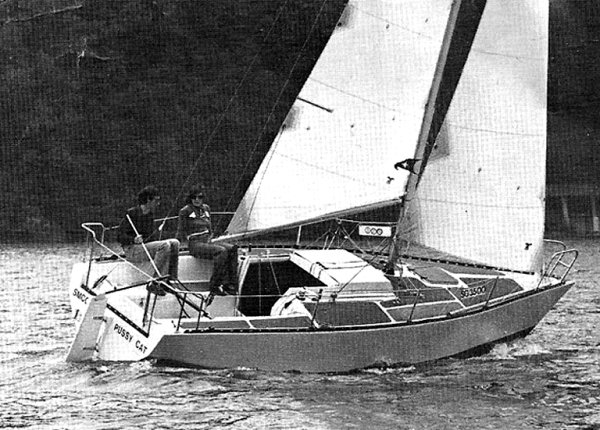

FAN 22
Built by Bootswerft Thoma (Switzerland)
• Designed by Julian Everitt
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
First Built:
1977
Last Built:
1985
Number Built:
75
Dimensions
Length Overall (LOA):
6.64 m
Length Waterline (LWL):
5.49 m
Beam:
2.50 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
901 kg
Ballast:
300 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
8.40 m²
Mainsail Area:
11.91 m²
Sail Area:
20.31 m²
Sail Area (reported):
20.35 m²
I (Fore Triangle Height):
7.35 m
J (Fore Triangle Base):
2.29 m
P (Mainsail Hoist):
8.23 m
E (Boom Length):
2.90 m
Est. Forestay Length:
7.69 m
Engine & Systems
Performance Ratios
Hull Speed:
5.69 knots
SA/Displacement (Calc):
22.18
SA/Displacement (Reported):
22.22
Ballast/Disp Ratio:
33.32%
Displacement/Length:
152.10
Comfort Ratio:
9.73
Capsize Screening:
2.61
S-Number:
4.03
Immersion:
94 kg/cm
Notes
Designed to the IOR Mini Ton rule and for lake sailing in Switzerland, the FAN 22 is a multi chine design with four berth accommodation.
