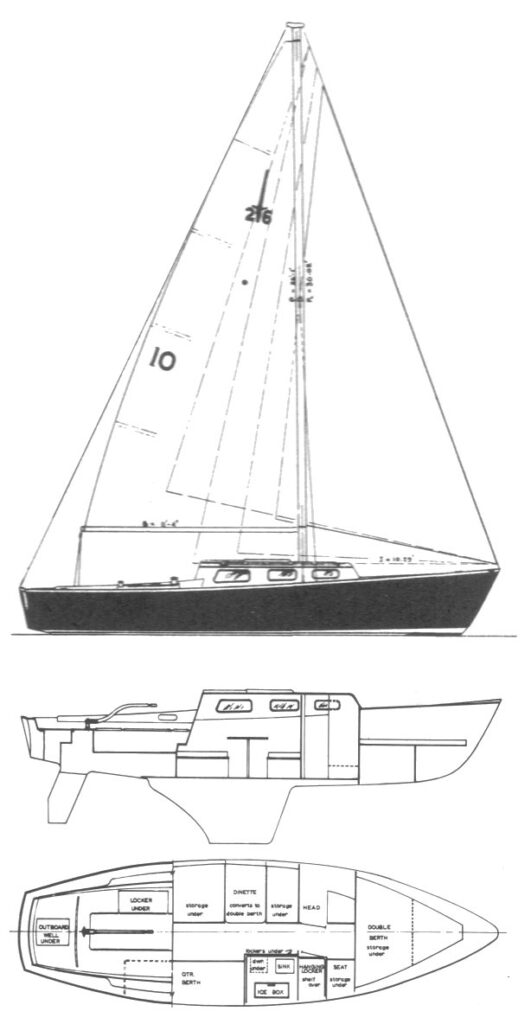

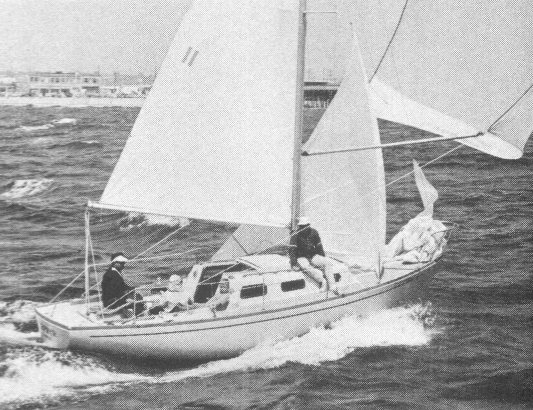

EXCALIBUR 26
Built by Excalibur Marine/Wayfarer Yacht Corp. (USA)
• Designed by William Crealock
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1967
Number Built:
220
Dimensions
Length Overall (LOA):
7.90 m
Length Waterline (LWL):
6.61 m
Beam:
2.34 m
Draft (Max):
1.42 m
Weight & Ballast
Displacement:
1,710 kg
Ballast:
728 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
14.35 m²
Mainsail Area:
13.73 m²
Sail Area:
28.07 m²
Sail Area (reported):
28.06 m²
I (Fore Triangle Height):
9.15 m
J (Fore Triangle Base):
3.14 m
P (Mainsail Hoist):
7.95 m
E (Boom Length):
3.45 m
Est. Forestay Length:
9.67 m
Engine & Systems
Performance Ratios
Hull Speed:
6.24 knots
SA/Displacement (Calc):
20.01
SA/Displacement (Reported):
20.00
Ballast/Disp Ratio:
42.57%
Displacement/Length:
165.39
Comfort Ratio:
16.83
Capsize Screening:
1.97
S-Number:
3.54
Immersion:
106 kg/cm
Notes
Approximately 25 EXCALIBUR 26s were built by Excalibur Marine Corp in the mid 60s. Another 200 or so were produced when the molds were purchased by Islander Yachts. Later, a few more were built when Iona Yachts acquired the molds.
