EVOLUTION 19
Built by Evolution Yachts Ltd. (UK)/Production Yachts Pty.
• Designed by Julian Everitt
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
First Built:
1975
Last Built:
1980
Number Built:
124
Dimensions
Length Overall (LOA):
5.79 m
Length Waterline (LWL):
4.88 m
Beam:
2.44 m
Draft (Max):
1.38 m
Draft (Min):
0.27 m
Weight & Ballast
Displacement:
953 kg
Ballast:
408 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
7.09 m²
Mainsail Area:
7.91 m²
Sail Area:
14.99 m²
Sail Area (reported):
14.96 m²
I (Fore Triangle Height):
6.16 m
J (Fore Triangle Base):
2.30 m
P (Mainsail Hoist):
6.87 m
E (Boom Length):
2.30 m
Est. Forestay Length:
6.57 m
Engine & Systems
Performance Ratios
Hull Speed:
5.36 knots
SA/Displacement (Calc):
15.78
SA/Displacement (Reported):
15.75
Ballast/Disp Ratio:
42.86%
Displacement/Length:
228.88
Comfort Ratio:
12.03
Capsize Screening:
2.50
S-Number:
2.25
Immersion:
82 kg/cm
Notes

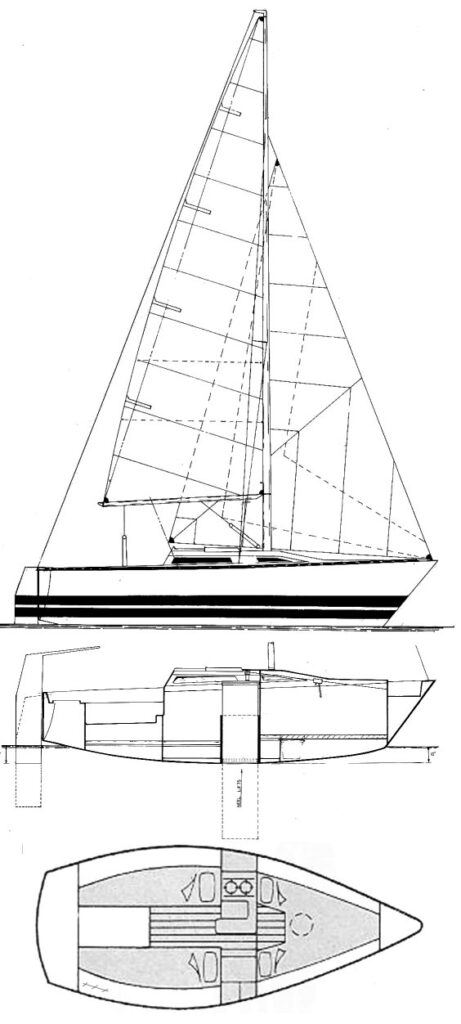

Thanks to the designer for supplying data and images.
