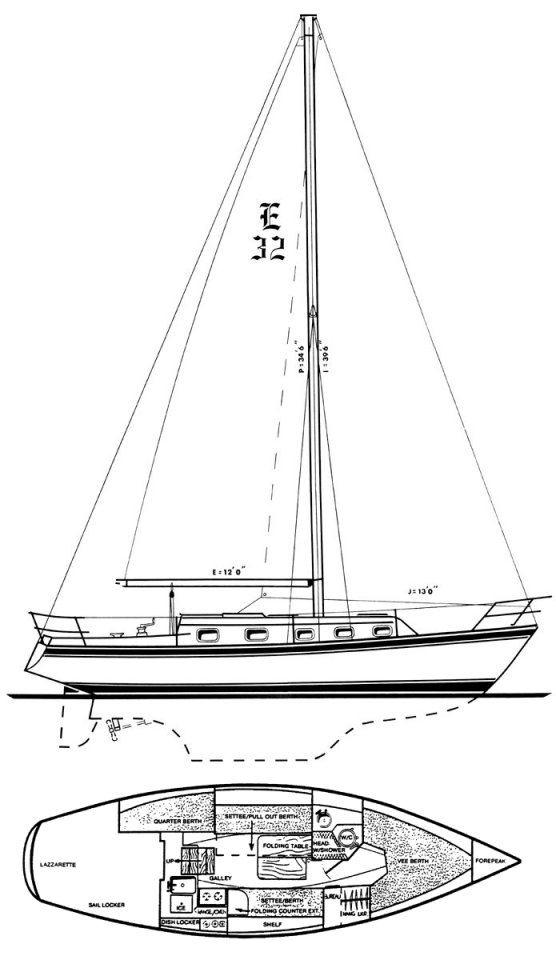

ENDEAVOUR 32
Built by Endeavour Yacht Corp. (USA)
• Designed by Ted Irwin / Dennis Robbins
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1976
Last Built:
1982
Number Built:
600
Dimensions
Length Overall (LOA):
9.75 m
Length Waterline (LWL):
7.70 m
Beam:
2.97 m
Draft (Max):
1.28 m
Max Height:
13.11 m
Weight & Ballast
Displacement:
5,307 kg
Ballast:
2,268 kg
Sail Plan
Foresail Area:
23.85 m²
Mainsail Area:
19.23 m²
Sail Area:
43.08 m²
Sail Area (reported):
43.11 m²
I (Fore Triangle Height):
12.04 m
J (Fore Triangle Base):
3.96 m
P (Mainsail Hoist):
10.52 m
E (Boom Length):
3.66 m
Est. Forestay Length:
12.67 m
Engine & Systems
Engine Make:
Yanmar or Westerbeke
Engine Type:
Diesel
Fuel Capacity:
76 L
Water Capacity:
246 L
Performance Ratios
Hull Speed:
6.73 knots
SA/Displacement (Calc):
14.45
SA/Displacement (Reported):
14.46
Ballast/Disp Ratio:
42.74%
Displacement/Length:
324.45
Comfort Ratio:
31.93
Capsize Screening:
1.72
S-Number:
1.39
Immersion:
157 kg/cm
Notes
The ENDEAVOUR 32 was the first boat from Endeavour and was actually the same basic hull as the earlier IRWIN 32 with modifications by Dennis Robbins, in-house designer for Endeavour at this time. Other changes to the design (by Bob Johnson?) were made in 1980.
