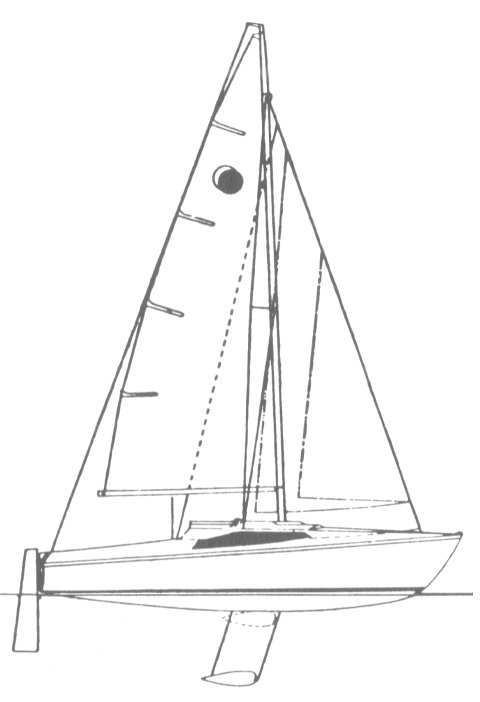

ECLIPSE MKII (PROCTOR)
Built by Newbridge Yachts (UK)
• Designed by Ian Proctor
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
First Built:
1972
Dimensions
Length Overall (LOA):
6.71 m
Length Waterline (LWL):
5.89 m
Beam:
2.34 m
Draft (Max):
1.37 m
Draft (Min):
0.53 m
Weight & Ballast
Displacement:
1,088 kg
Ballast:
362 kg
Ballast Type:
Iron
Sail Plan
Sail Area (reported):
17.28 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.89 knots
SA/Displacement (Reported):
16.65
Ballast/Disp Ratio:
33.26%
Displacement/Length:
148.51
Comfort Ratio:
12.18
Capsize Screening:
2.30
Immersion:
95 kg/cm
Notes
Several variations were offered including the choice of fin or lifting keel, and fractional or masthead rig.
