E 28
Built by Platinum Yachting/ Rock Run Yachts (UK)
• Designed by Julian Everitt
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
First Built:
1992
Number Built:
7
Dimensions
Length Overall (LOA):
8.59 m
Length Waterline (LWL):
7.20 m
Beam:
3.12 m
Draft (Max):
1.92 m
Weight & Ballast
Displacement:
2,160 kg
Ballast:
928 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
18.76 m²
Mainsail Area:
21.10 m²
Sail Area:
39.86 m²
Sail Area (reported):
39.86 m²
I (Fore Triangle Height):
10.66 m
J (Fore Triangle Base):
3.52 m
P (Mainsail Hoist):
11.10 m
E (Boom Length):
3.80 m
Est. Forestay Length:
11.23 m
Engine & Systems
Performance Ratios
Hull Speed:
6.51 knots
SA/Displacement (Calc):
24.32
SA/Displacement (Reported):
24.32
Ballast/Disp Ratio:
42.97%
Displacement/Length:
161.33
Comfort Ratio:
13.29
Capsize Screening:
2.44
S-Number:
4.12
Immersion:
154 kg/cm
Notes

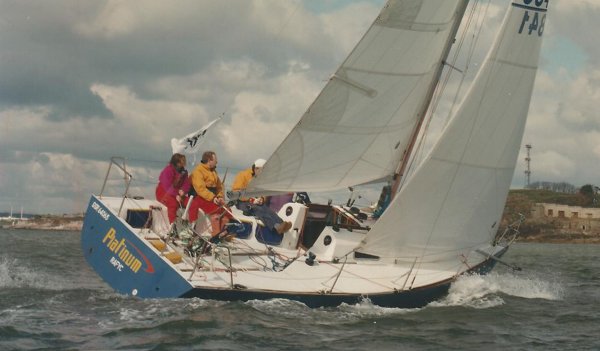

Built in both round bilge and chine construction. One boat, 'Platinum' was a very successful JOG, racer in the UK.
