DEHLER 46 SQ
Built by Dehler
• Designed by judel/vrolijk
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
2022
Dimensions
Length Overall (LOA):
14.94 m
Length on Deck (LOD):
13.95 m
Length Waterline (LWL):
12.90 m
Beam:
4.35 m
Draft (Max):
2.25 m
Max Height:
21.23 m
Weight & Ballast
Displacement:
11,500 kg
Ballast:
3,500 kg

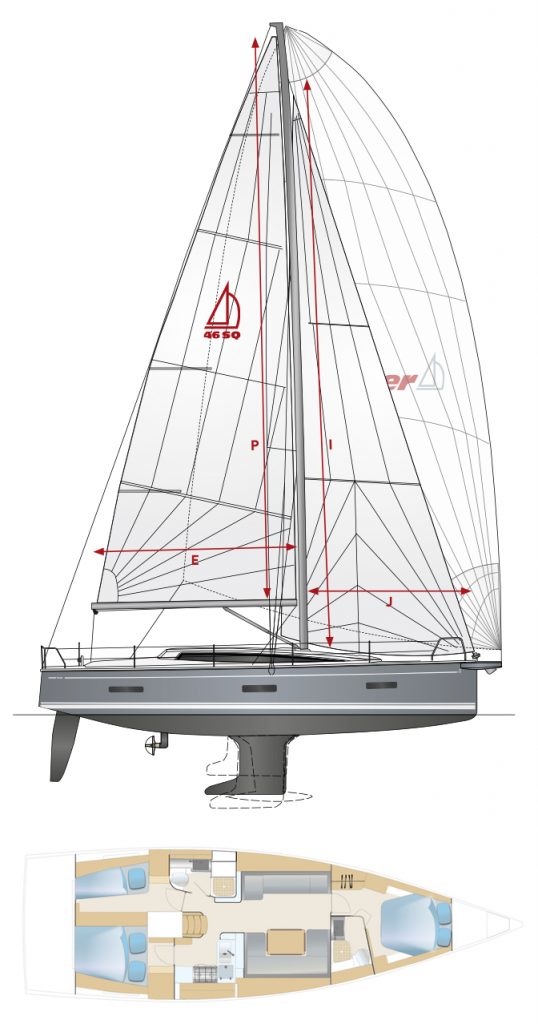

Sail Plan
Foresail Area:
49.76 m²
Mainsail Area:
55.27 m²
Sail Area:
105.03 m²
Sail Area (reported):
116.73 m²
I (Fore Triangle Height):
18.10 m
J (Fore Triangle Base):
5.50 m
P (Mainsail Hoist):
17.68 m
E (Boom Length):
6.25 m
Est. Forestay Length:
18.92 m
Engine & Systems
Engine Type:
Diesel
Engine Power:
57 HP
Fuel Capacity:
210 L
Water Capacity:
450 L
Performance Ratios
Hull Speed:
8.72 knots
SA/Displacement (Calc):
21.04
SA/Displacement (Reported):
23.39
Ballast/Disp Ratio:
30.43%
Displacement/Length:
149.33
Comfort Ratio:
25.65
Capsize Screening:
1.95
S-Number:
3.93
Immersion:
385 kg/cm
Notes
SQ = Speed and Quality. Same hull as the 46 but built lighter and stiffer with a more powerful rig.
