BENETEAU 46 - Photo

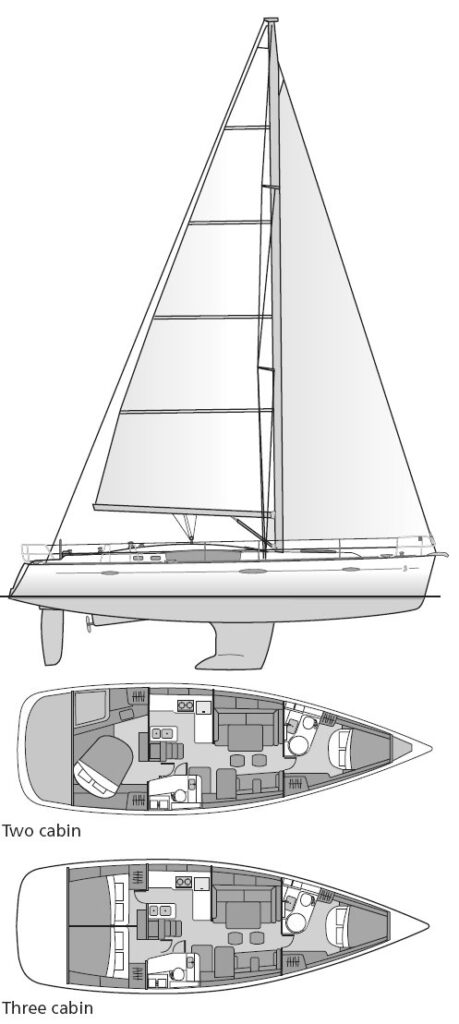

BENETEAU 46 - Drawing

General Information

Hull Type: Fin w/bulb & spade rudder
Rigging Type: Fractional Sloop
Construction: FG
First Built: 2007

Dimensions

Length Overall (LOA): 14.40 m
Length on Deck (LOD): 13.68 m
Length Waterline (LWL): 12.20 m
Beam: 4.25 m
Draft (Max): 2.05 m
Headroom: 1.94 m

Weight & Ballast

Displacement: 10,565 kg
Ballast: 2,915 kg
Ballast Type: Cast iron

Sail Plan

Foresail Area: 41.06 m²
Mainsail Area: 40.47 m²
Sail Area: 81.53 m²
Sail Area (reported): 93.50 m²
I (Fore Triangle Height): 16.43 m
J (Fore Triangle Base): 5.00 m
P (Mainsail Hoist): 15.27 m
E (Boom Length): 5.30 m
Est. Forestay Length: 17.17 m

Engine & Systems

Engine Make: Yanmar
Engine Type: Diesel, Saildrive
Engine Model: 4JH4AE
Engine Power: 75 HP
Fuel Capacity: 200 L
Water Capacity: 530 L

Performance Ratios

On the numbers, Beneteau 46 rates as moderate (SA/D 17.3) and light (D/L 162). Its comfort ratio of 25.5 is in the "coastal cruiser" band; its ballast/displacement ratio of 27.6% is in the "low" band. Against its peers, Ballast/Disp stands out: lower than 94% of the 882 monohulls between 13.0 m and 15.8 m in our catalogue.

Ratios use published displacement (often light ship) and reported sail area; see Sources & methodology.

Hull Speed: 8.48 knots
SA/Displacement (Calc): 17.28

SA/D 17.3 — moderate. Higher than 56% of the 576 monohulls between 13.0 m and 15.8 m in our catalogue. Sail area relative to displacement: the higher the number, the more sail the boat carries for its weight, which means more power in light air.

SA/Displacement (Reported): 19.82
Ballast/Disp Ratio: 27.59%

Ballast/Disp 27.6% — low. Lower than 94% of the 882 monohulls between 13.0 m and 15.8 m in our catalogue. The share of the boat's weight that is ballast: a higher share generally means a stiffer boat that stands up better to its sail area.

Displacement/Length: 162.11

D/L 162 — light. Lower than 79% of the 961 monohulls between 13.0 m and 15.8 m in our catalogue. Displacement relative to waterline length: low numbers mean a light boat that accelerates and planes easily, high numbers a heavy boat that carries its weight through a seaway.

Comfort Ratio: 25.54

Comfort ratio 25.5 — coastal cruiser. Lower than 82% of the 961 monohulls between 13.0 m and 15.8 m in our catalogue. An estimate of motion comfort in waves from displacement, beam and length: higher values suggest a slower, gentler motion.

Capsize Screening: 1.96

Capsize screening 1.96 — meets the common offshore guideline. Higher than 79% of the 975 monohulls between 13.0 m and 15.8 m in our catalogue. A screening formula from beam and displacement: lower is better, and values under 2.0 are the common guideline for offshore boats.

S-Number: 3.23

S-number 3.2. Higher than 72% of the 563 monohulls between 13.0 m and 15.8 m in our catalogue. A stability number combining hull form and ballast: higher values indicate better stability and sea-keeping.

Immersion: 356 kg/cm

Notes

Part of the Oceanis line, this model was called Oceanis 46 outside the US.
